Any commerical solutions that work at low cost for dust collection of my sliding miter saw.  Also what are your homemade and proven dust collection for a miter saw solutions.



Edited November 22, 20178 yr by Ron Dudelston
tags added

I use a FastCap chop saw hood. It contains 99% of the dust. But, it's huge.



I have a Dewalt 12" SCMS that lives on a rolling Rigid stand from Home Depot and have tried a few different things to tame the sawdust. If I was doing just 90 degree cuts I could use a clear plastic dust hood which I also used to use on my lathe on a stand. It was attached to my DC system and it worked pretty well. But if I had to make angle or compound cuts then the hood was useless. So I just decided to take off the dust bag and hook up a DC hose directly to the SCMS which picks up about 60-70% of the dust.

2 hours ago, Allen Worsham said:

I just decided to take off the dust bag and hook up a DC hose directly to the SCMS which picks up about 60-70% of the dust.

Me too

My proven method for this problem is to set the saw up outside.  Unless I am working on interior trim...

Cal

That'll work.

I gave up after about 3 different tries. I moved the miter saw to the shed where it comes out for home improvement projects.

I modeled mine after a guy on Wood Saws nDust. Connect DC from below saw with a hollow box collector. Made a hood above the saw which I have enlarged twice. The new configuration gets about 85% of what comes off the saw. Will try to remember to make a pic this afternoon

Gerald, was that Jim Becker?

I don't use anything on mine, If I use it, I take it outside and put it on  saw horses. then use the leaf blower to blow away the sawdust over to the neighbors place. The rest of the time it sets under my workbench. Not my favorite tool.

Herb



I hooked up a small shop vac ($20 at Menards on sale) with a master-slave switch so it comes on when I pull the saw trigger.    The one thing that helped a lot is I put some duct tape back to back at the back edge of the hood.   It channels the dust up to the port that way that it didn't without it.  Adapted this idea from one I saw on the Festool miter saw.



Currently, I have a cardboard box behind the saw to catch what the vac doesn't.   When i build my miter saw station, I plan to build a hood and hook it up to the dust collector sitting nearby.   I saw a video last night and the guy had made a hood and on the front edge was a sheet of plastic with tabs cut up and down it, so the majority of it was enclosed, but would cut at any angle.

Keith what is the web site of that video?

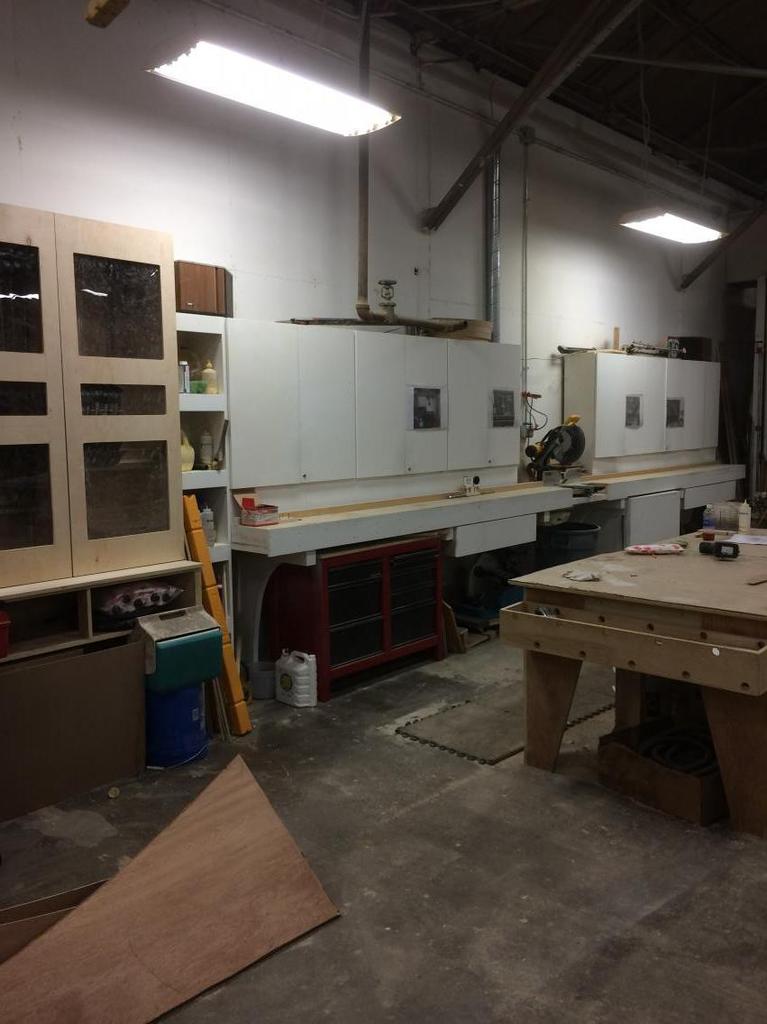

Found this from Keith

4 hours ago, Fred W. Hargis Jr said:

Gerald, was that Jim Becker?

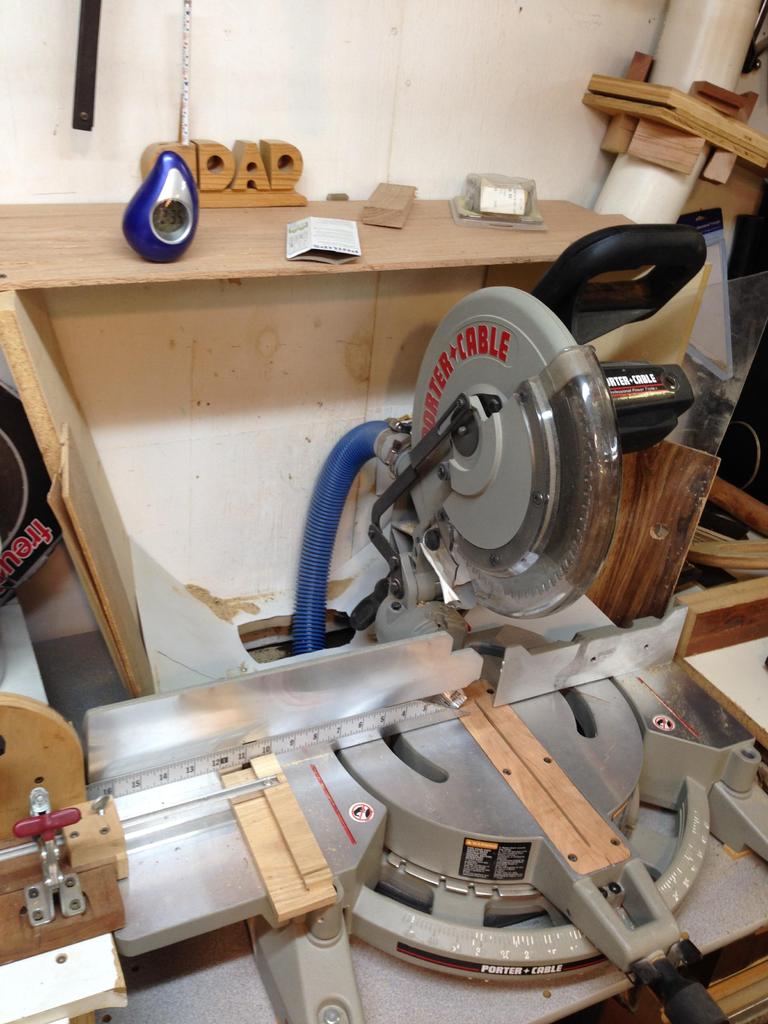

Yes. Here is pic no where as  nice As his

You really can't tell it but a pipe comes down and as dust is created it falls into the "pit"  and about 1/2 goes into the 4" dust pipe and after awhile I'll take an air nozzle and lightly blow the rest into the pipe.. Not perfect but works from fair to good...
