Hello,



I know that I am not the first to have this issue. I just got a Dust Deputy Deluxe Cyclone Separator Kit as a gift and have been putting it together. I have a Fein Woodworking vacuum that I want to attach it to and it seems that I need an adapter to connect it to the dust deputy. I contacted Onieda air and they gave me a link to a company that makes plumbing accessories. An email to them resulted in no reply. Has anybody else out there faced this problem? If so, how did you do it?



Best to all



Ron

Edited November 22, 20178 yr by Ron Dudelston
tags added

I don't have your exact setup but when I put my stuff together, I went to the plumbing section of Lowes and found stuff to match my hose sizes. Some were white PVC and others were black.

Fernco adapters from any big box or plumbing supply house...



Fernco Flexible Couplings - Fernco - Fernco Fittings ...

If you have a lathe and a chuck you can make PVC fittings that are close to the size that you need.  The PVC turns easily with regular tools.



NOTE:  The inlet port on the side of the Dust Deputy is made to accommodate two hose sizes.  If you are using the large size cut the smaller size off.  I found it will catch some shards behind it and overtime a clog will develop.  I cut the smaller diameter section off and solved the problem.  The center top is not a problem since debris does not go through it and can be left as is.

Look by the shop vacuum display at the big box.   They typically have a few boxes of adapters, if not, head to plumbing like suggested.  Then there's always duct tape.   It is a duct isn't it???

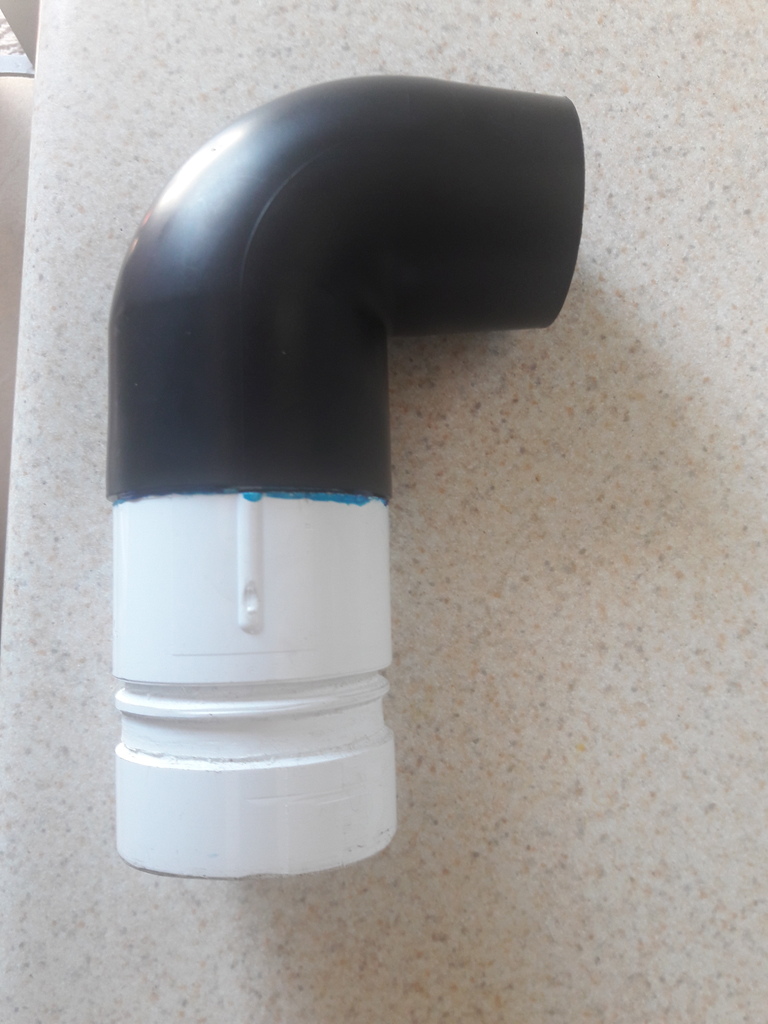

Just thought that I would show you what I did. I took the advice from Handy Dan's post and bought some PVC 1 1/2" pipe and a joining adapter for 1 1/2" pipe. I found the the link piece was about the size that the vacuum accepts from the hose. So I put it on my lathe and made an exact match. I used half of the joining adapter to make what goes into the vacuum and used the other half to fit inside the 90 degree angle provided in the kit. This made a snug fit. I have a photo showing what I made on the lathe and the setup of my system. Now I just need to find hose clamps to hook the black hose to the vacuum. Thanks for the suggestion Handy Dan, it was fun using the lathe on pvc.



Ron

Looks professional!  Nice job! I buy most of my hose clamps from Tractor Supply.

1 hour ago, rlpeterson said:

Thanks for the suggestion Handy Dan, it was fun using the lathe on pvc.



You're welcome Ron.  Glad you came back and let us know how you made out.  It is fun turning the PVC on the lathe but it sure makes a mess to clean up.

21 hours ago, HandyDan said:

it sure makes a mess to clean up

As you all probably know, I'm new to turning, so I have to ask:  What lathe work doesn't make a mess to clean up?

1 hour ago, PostalTom said:

As you all probably know, I'm new to turning, so I have to ask:  What lathe work doesn't make a mess to clean up?
