Wednesday's Wisdom For Woodturners Sept 23 2015

Featured Replies

I did manage to spend a little time at the lathe, this past week. One thing on my list to do was to finish the platter- which actually turned out to look even more like a collection plate. To make the texture stand out, I painted it black. Just used hobby store acrylic stuff. After it dried, I sanded the high spots. To finish the bottom, I reversed chucked the turning and brought the tailstock up to maintain stability. So that the live center didn't mar the bottom I used a scrap of wood to apply the pressure. Then applied several coats of wipe one semigloss poly.

Painted_platter.thumb.JPG.8b92c98efb562c

bottom_prep.thumb.JPG.5b087cf71d73409b77

platter_bottom.thumb.JPG.f80470d780db54a

The bottom is concave. The foot is just the rim formed by the scooped out bottom and the sloping side.

Feeling pretty cocky, I decided to try another long overdue gift to a friend. The texturing went so well, I thought I'd add it to a small bowl. First up, however, was the need to make a new tool for creating the inside "dovetail" for chuck mounting.

dovetail_tool.thumb.JPG.0b5029d5714d825e

It's just an old large file ground to the correct angle. I made it short on purpose. File are brittle and a long tool rest overhang combined with a catch could prove disastrous. The bowl is small and simply shaped.

small_bowl.thumb.JPG.263987a6e417e79d6cc

At this point, I removed the face plate and mounted the piece on my chuck. Refined the shape a little and added some texturing.

texture_and_paint.thumb.JPG.1161b856a343

Sometimes your mind's eye and the real thing differ greatly. Although not anywhere near what I want, I pressed on.

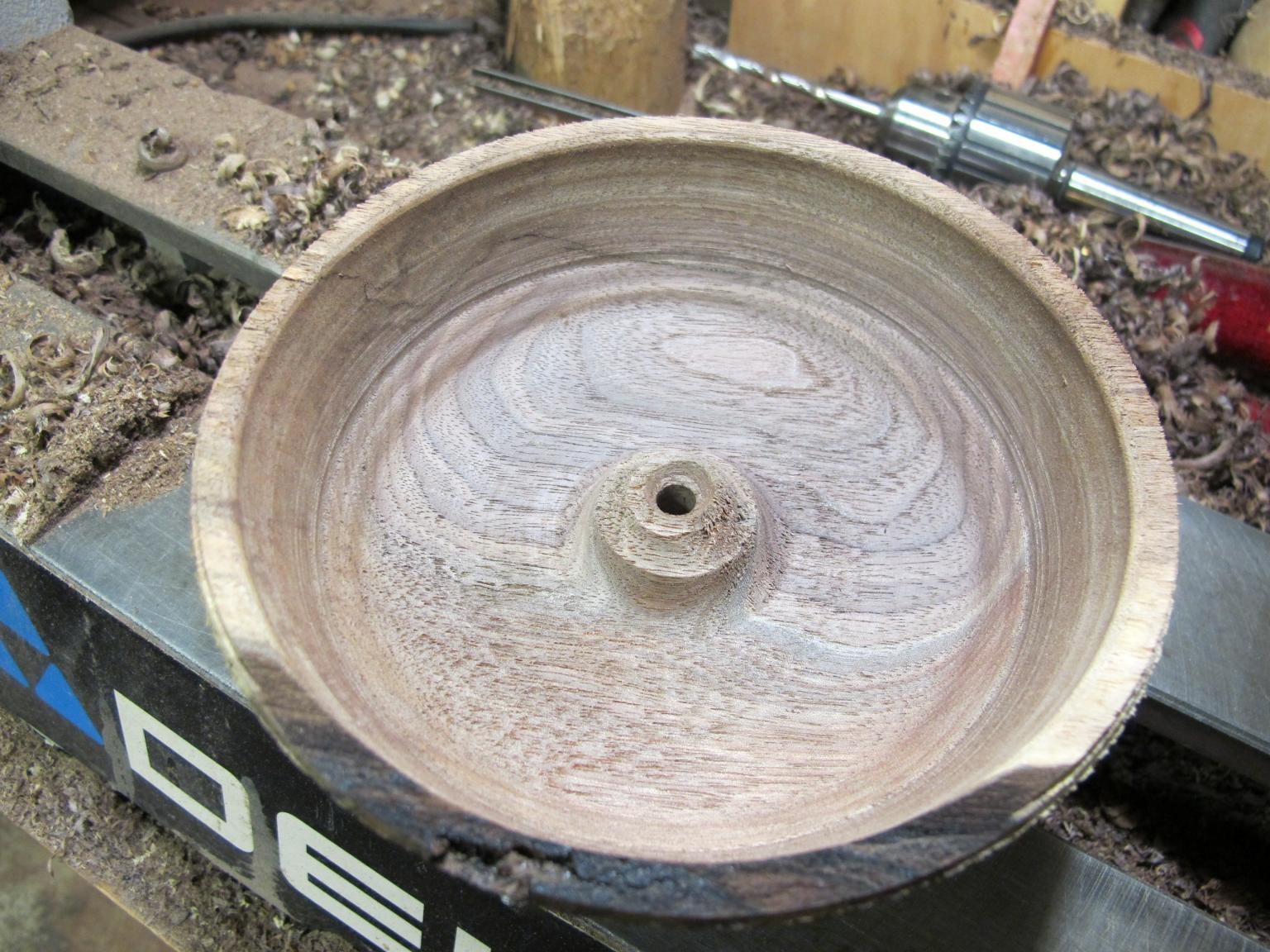

Time to shape the inside. Here again, I thought I'd try something new. I usually hog out most of the material first using bowl gouges. I get close the depth I want and then refine the wall thickness. I see many turners use a handled drill bit to set the depth of their turnings. I'll give that a shot.

drilled.thumb.JPG.bbfbc8f32609b9e202cced

I was going to make a handle to hold the bit, but everything was in place so I put the bit into my lathe jacobs chuck and handheld it to drill the hole.

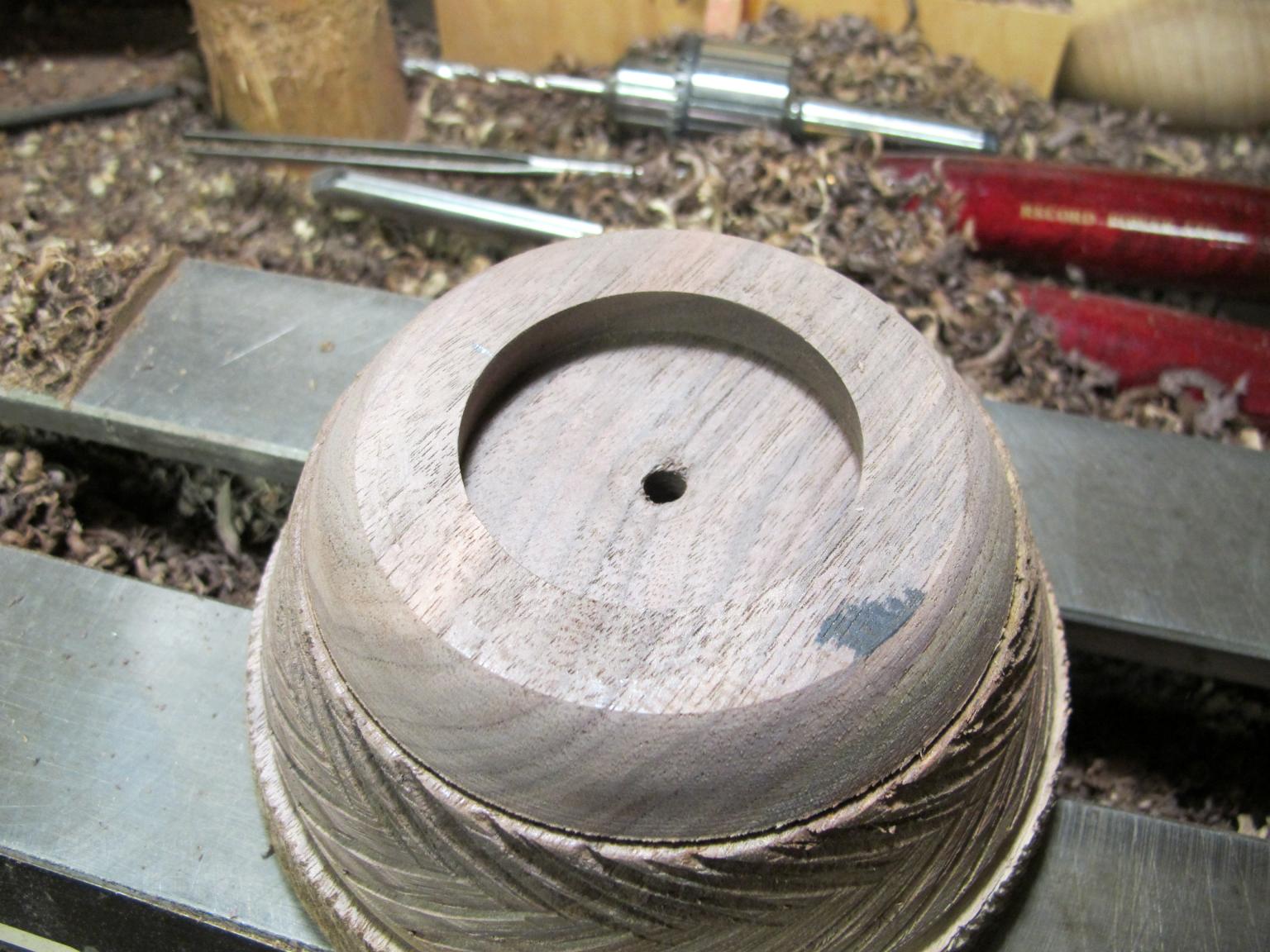

Here's a tip- make absolutely, positively certain to accurately take into account the depth of the recess into which the chuck sets.

mistake.thumb.JPG.1b4f54e02332045938a92e

As this is a family site, I won't print the range of Navy vocabulary that was used at this point. I guess it could be used as a funnel.

Pressing on, I turned a plug and glued it into place. To accurately gauge the diameter, on small spindles, I use a set of ignition wrenches.

plug_diameter.thumb.JPG.59c67d7c21d12279

This is where I stopped. Mimi volunteered me to make some Adirondack porch chairs. At least I didn't drill any holes too deep, in them, YET.

A couple of turning videos for your enjoyment-

In the first one, Martin Saban-Smith uses an airbrush to create a stunning platter-

And this one is on turning a lidded box by George Watkins-

Safe Turning!

Your platter is a piece of art, well done

  • Author

Your platter is a piece of art, well done

Thanks for the kind words, Ron, they are rally appreciated.

  • 2 weeks later...

really nice  platter/bowl

 Love your combination of texturing and color.
