Walnut Rocker Seat

Featured Replies

I just got out of the shop here, and I finished the prelim cutting of the seat notches.

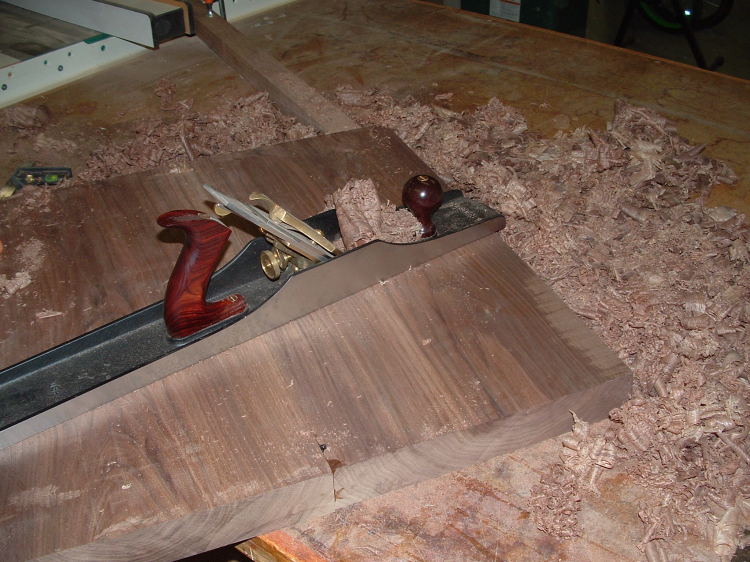

Flattening the seat blank, it had a very slight cup in it.

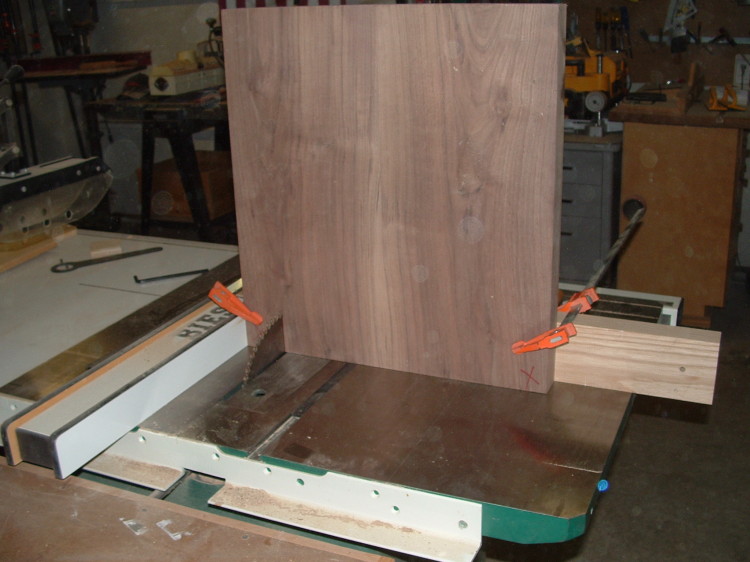

ning-seat3-50609-40.jpg?width=750Cutting the rear leg notches on the TS


ning-rearlegnotch-50609-41.jpg?width=750The final cuts for the rear leg notches, perfectly square!

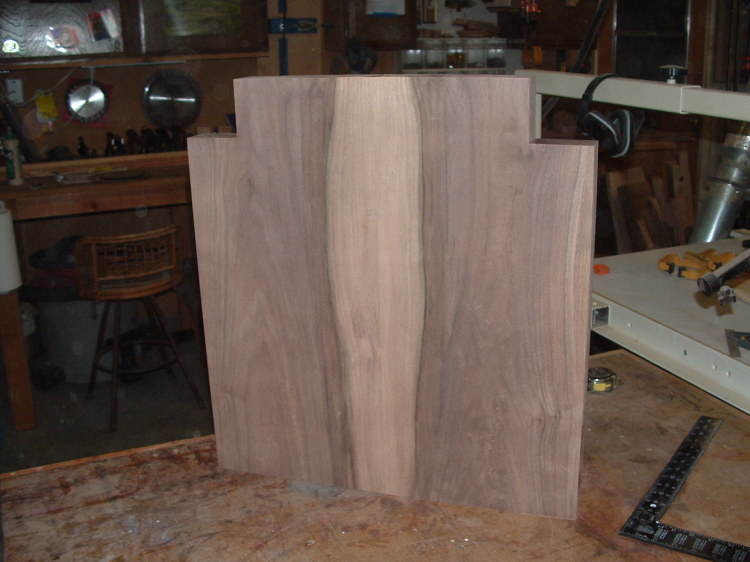

ning-rearlegnotchfinish-50609-28.jpg?widFront and Rear Leg Notches cut, and routed with a 1.5" rad rabbeting bit.

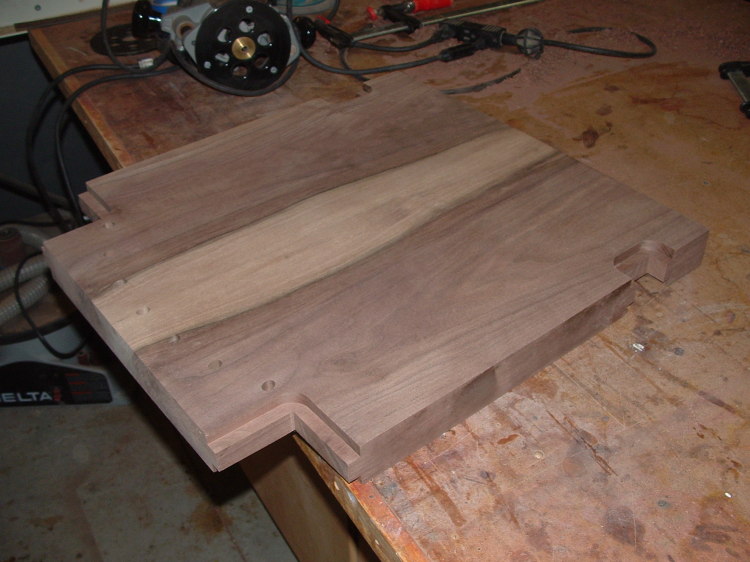

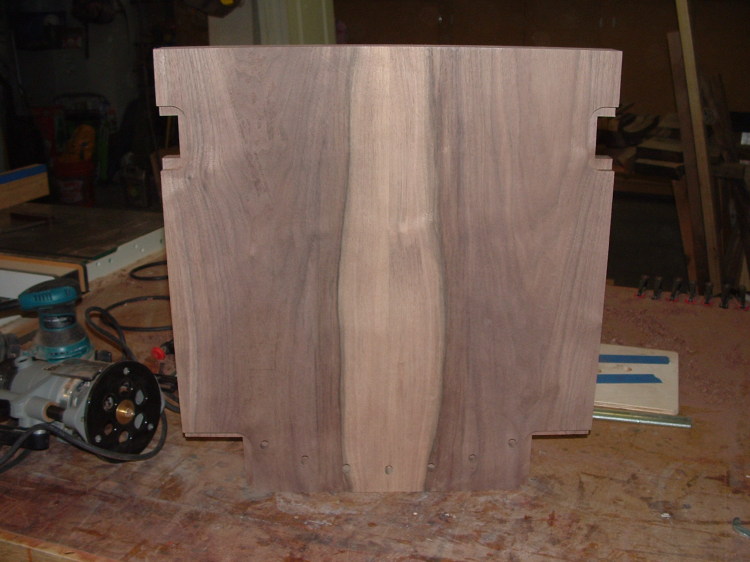

I also was to get the back brace holes routed in the rear of the seat as well tonight, I used a 1/4" spiral bit and a 1/2" OD guide bushing with a template.


ning-027-50609-78.jpg?width=750ning-028-50609-2.jpg?width=750Thanks for looking folks! Now, back out in the shop I go!

Wow! John, you're moving right along. Looking good. Take lots of pictures of the "scooping out process" Please.

Looking good John. I love to see the progress on the rocker.





Keep the pictures coming.




  • Author

You got it Rich, or should we say the grinding out process! I wish I could tell you I do the romantic way with a chair scoop and all, but it's done with a right angle grinder and disc. Pictures will abound at your request though Rich regardless. Thanks for your interest.


Richard McComas said:

Wow! John, you're moving right along. Looking good. Take lots of pictures of the "scooping out process" Please.

  • Author

Will do John!


John Moody said:

Looking good John. I love to see the progress on the rocker.



Keep the pictures coming.



John, I just want to buy the seat.  Those of some beautiful boards.

Yea, you could re-saw those and have twice the material.Grin.gif

  • Author

Thanks Randall, the seat is for sale! After the leg and arms and back are attached to it!24.gif
Thanks again Randall,

Randall Farris said:


John, I just want to buy the seat.  Those of some beautiful boards.

  • Author

But the seat wouldn't hold my big butt after that Rich!


Richard McComas said:

Yea, you could re-saw those and have twice the material.Grin.gif

Bertha had a big ole butt.Smile.gif


The American Woodworker said:

But the seat wouldn't hold my big butt after that Rich!

Richard McComas said:
