March 30, 201115 yr  On some through tenon joints, it is a nice touch to "pin" the joint together.   Now, how would one get the joint nice and tight?   A process called draw boring.    One drills the hole through the outside faces of the joint.  Then fit the tenon into the joint.   Make a mark on the tenon as to where the CENTER of the hole falls.    Pull tenon back out.   Now, make a mark on the tenon's shoulder side of the first mark.  Go about 1/4-1/2 the diameter of the hole back towards the shoulder of the tenon.   Drill this mark.    Now, re-fit the tenon into the joint ( glue if you like) and install the pin(s).    It helps if the end of the pin has a point on it.  As you drive the pin "home" joint will get a lot tighter.   Trim the ends of the pins as needed.  When I made a couple of louvered passage doors ( way back when) I used this method to draw the joints together.   Along with a couple wedges, and two draw-bored pins per joint, NO GLUE was needed.   Both doors were delivered "pre-hung" and ready to go in their openings.   One was a full louvered door, the other was only half.    Both are still in use.   Doors were straight grained fir, and painted.  Just a tip.

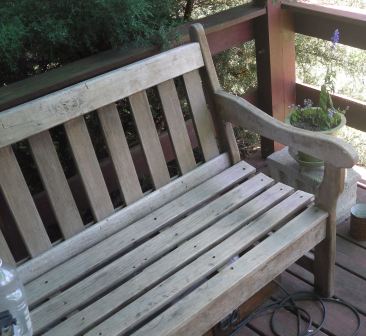

March 31, 201115 yr Author  On this bench, all M&T joints have been pegged.  I used some tongues that I ripped off from the T7G boards in the seat.  I sharpened on end of the homemade pegs, drilled a hole through the joints.   I drove the pins home, and sanded off the excess.   When done, the pegs looked square in section.    A "Square peg in a round hole" sort of thing.    I used the draw-bore trick to make the joint tight.  Bench in this picture has been sitting out on a back porch for over three years now, joints still nice and tight.
