My Model Shop Project.. Continued.



Today's images will show the shop as it is so far and then some images of some more very small stuff.

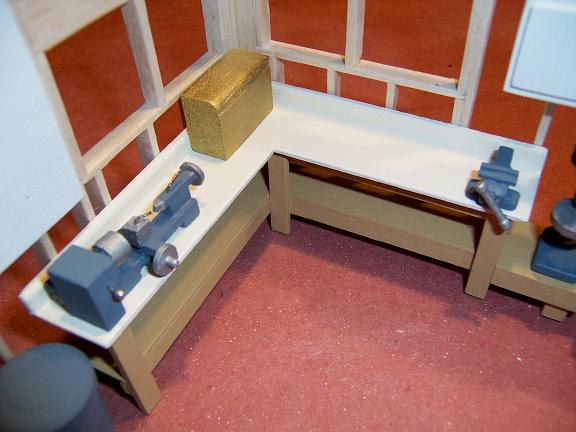

The first image shows an overhead closeup shot of the Model Shp's progress so far.



Note that the metal lathe now has levers on the tailstock and square turret as well as a lead screw lever.  And the vice now has a better looking handle.

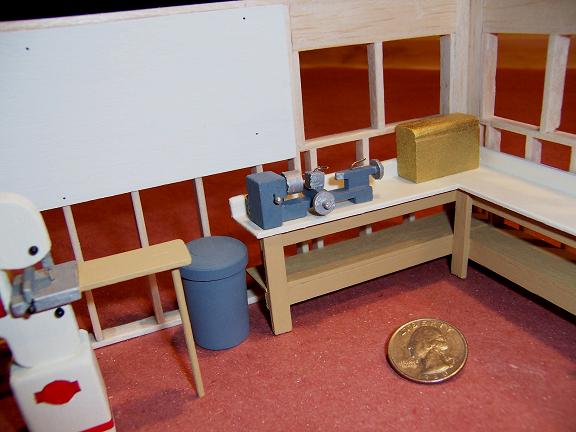

Image number two shows a close-up of the corner of the Shop that includes part of the Bandsaw and circle cutting jig.  Plans  of the ccircle cutting jig were posted yesterday .

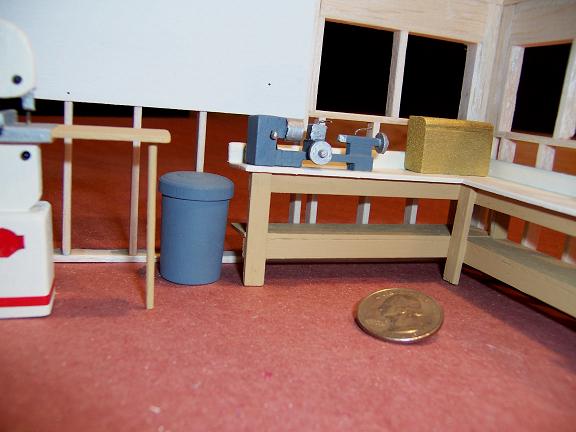

Number three shows a "ground level" image.

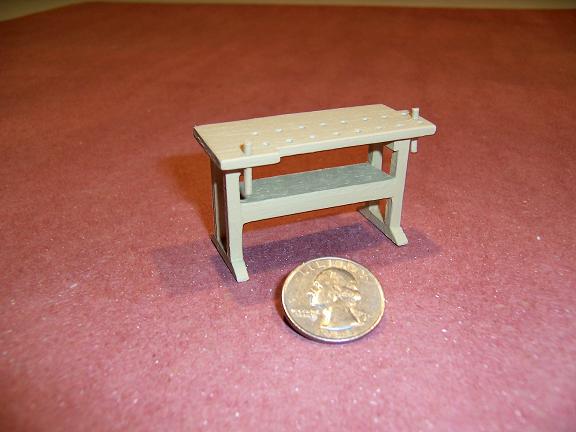

Number four  shows the Sjoberg workbench with the two vices and dog holes..





Image five shows my old 8" Black and Decker bench grinder.

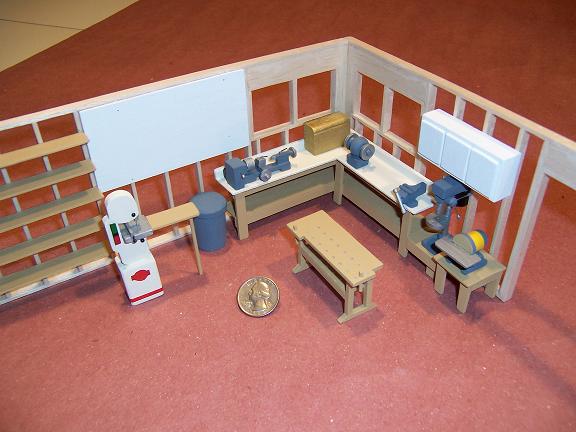

The last image shows the Model Sop with the addition on the Work Bench and Grinder.





Tomorrow, we'll show the portable vacuum, the 4' x 4' assembly table and the router table.



Larry
