Havin Fun With Some Ply and a Simple Box (BOX FINISHED!)

John Morris
John Morris
in Woodworking Archives

Featured Replies

I have built about 12 of these boxes through the last few years for our company survey trucks. And I've been at it again today, the boss sent me home and told me to build a box! So, here are some progress shots of our truck boxes. In the lower left there will be a drawer for the lath. The upper cubbies are for the tripods, and the lower right cubbies are for digging tools and misc. There will be some upper tubes that hold our "Survey Crew" signs, and cradles that hold our rods. I been on this one since this morning. I forgot how nice it is to just work with sheet goods and a pocket full of galvanized screws and glue. It's brain free work, just fun to cut straight lines again.

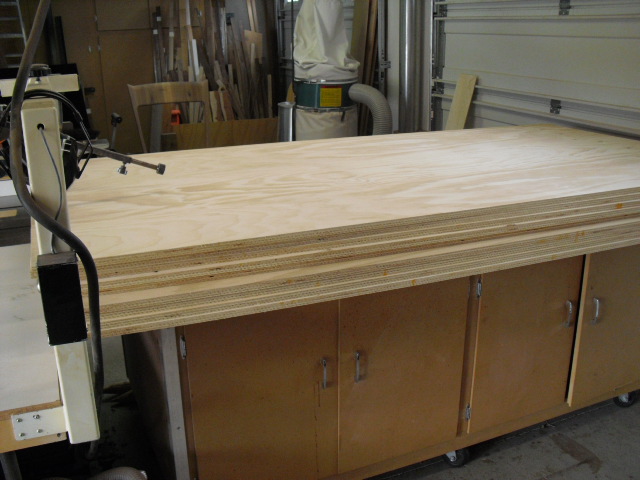

A big stack of ply wood soon to be a big ol box.




cross cutting the sheets to 6' in length, the bed of the truck is 8' but we want 2 in the clear for GPS equipment.

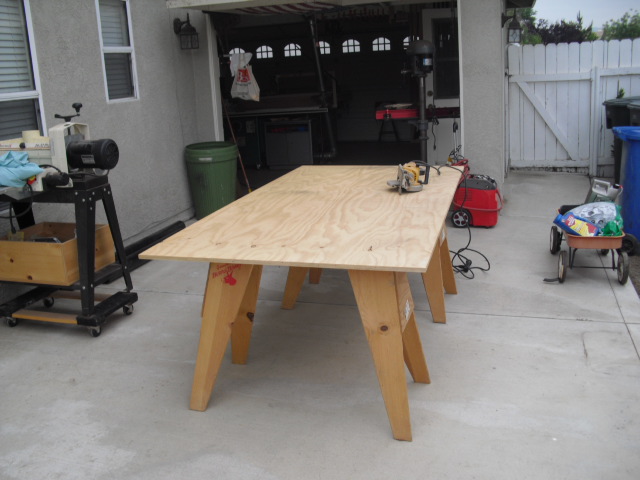

ning-countytruckbox013-44814-2.jpgDados cut and sides screwed in

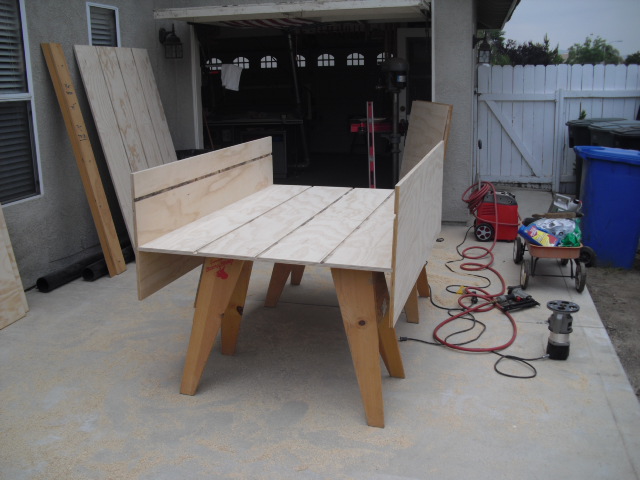

ning-countytruckbox014-44814-45.jpgTaking shape!

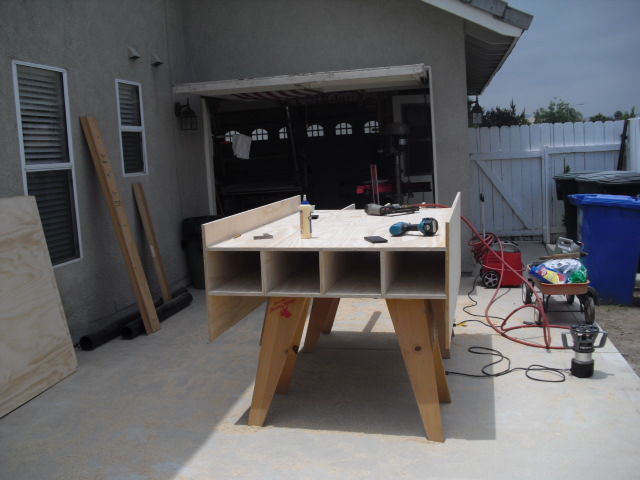

ning-countytruckbox015-44814-73.jpgAlmost there!

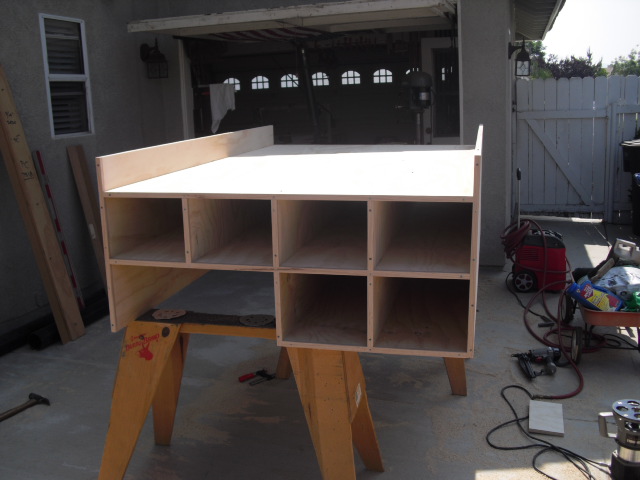

ning-countytruckbox016-44814-69.jpgAnd I'm done for the day!

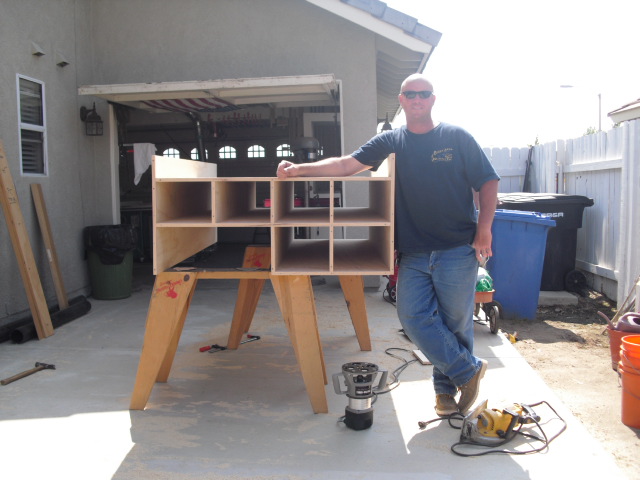

ning-countytruckbox021-44814-67.jpgI will finish the box tomorrow, I need to go into work first in the morning and take care of some business, then I'll drive the new company truck back home tomorrow morning, build the drawer, and put some finishing touches on the box and I'll post the final pics tomorrow afternoon. Thanks for looking guys!




Interesting John. You get to use your work daily I assume. The big question is do you paid for the woodworking or do you get your regular hourly rate? LOL. Looking forward to the finished pics. Nice to have some fun work isn't it?







Wayne
God Bless our Troops and Protect them.

Ah , the less glamorous side of wood working that fits form and function . Did you make jigs up along the way for future use ? A good post - please show the drawer details .  Thanks

Nice work, especially when it's on their dime.


Know of any good ways to find corner pins?


Larry

Great post John.  Very nice box. So is that a back garage door to the shop? Hmmm, cross ventilation.

John Moody
John Moody Woodworks
  • Author

My regular rate Wayne!! I'll get the finished pics up tomorrow!


Wayne Mahler said:

Interesting John. You get to use your work daily I assume. The big question is do you paid for the woodworking or do you get your regular hourly rate? LOL. Looking forward to the finished pics. Nice to have some fun work isn't it?




Wayne
God Bless our Troops and Protect them.


John Morris
The Patriot Woodworker
  • Author

Thanks Rob, yep, not glamorous at all. To tell you the truth, I feel right at home banging cabinets together, cuttin dados and making things square. I did that for years. I made this box just like I made the others, out of my head. No jigs, well I take that back, I use my dado straight edge for my PC 7518 Router. It's a 6' long straight edge and guide I made specifically for the PC and a 3/4 dado bit. I have had it forever. I will show the details you want Rob, but as you say, it taing gonna be glamorous, clean yes, but nothing fancy,


rob durfos said:

Ah , the less glamorous side of wood working that fits form and function . Did you make jigs up along the way for future use ? A good post - please show the drawer details .  Thanks


John Morris
The Patriot Woodworker
  • Author

Thanks Larry, your property corners? I work for food my friend!


Larry Jenkins said:

Nice work, especially when it's on their dime.

Know of any good ways to find corner pins?

Larry


John Morris
The Patriot Woodworker
  • Author

Thanks John, yep, that is a single car garage door that opens to our backyard. We have a 3 car garage that makes up my/our shop, woodworking for me and pottery for the misses. The original idea was to be able to pull through a boat or whatnot and park it on the slab the box is setting on.


John Moody said:

Great post John.  Very nice box. So is that a back garage door to the shop? Hmmm, cross ventilation.
John Moody
John Moody Woodworks


John Morris
The Patriot Woodworker

I'm impressed with the box but I'm also impressed that Mr Moody picked up that you have two garage doors.  Only in California could you get away with that.  Here in the flyover zone you'd never heat a garage with 2 doors even if they are insulated.

Ron Dudelston
Above and Beyond WoodWorks

Any chance there will be any left over ply I can have?

  • Author

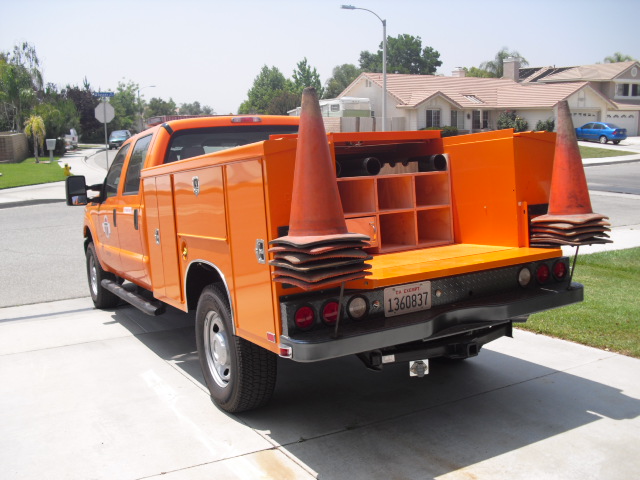

Here is the finished box folks.

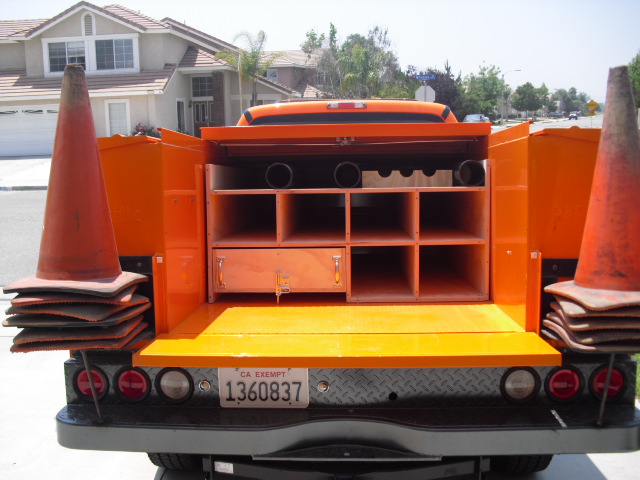

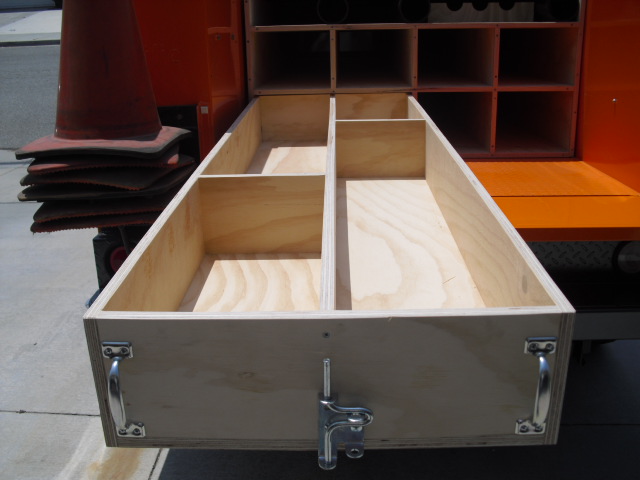

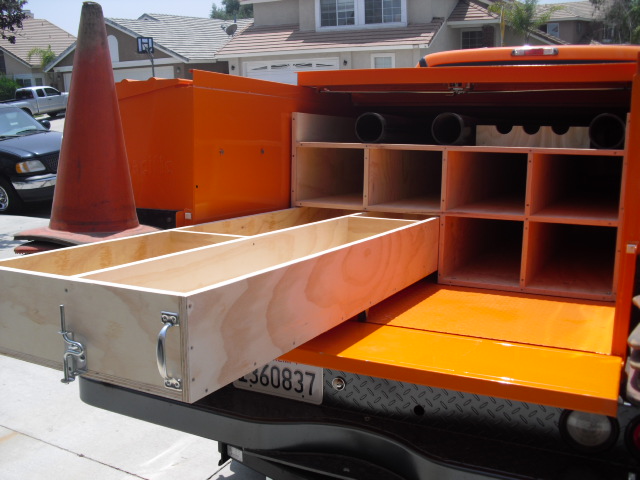

ning-countytruckbox002-44819-45.jpgning-countytruckbox003-44819-95.jpgning-countytruckbox004-44819-2.jpgning-countytruckbox005-44819-77.jpgning-countytruckbox006-44819-21.jpgRob, I hope the drawer layout is what you were interested in. I tried to get some good pics of the drawer.

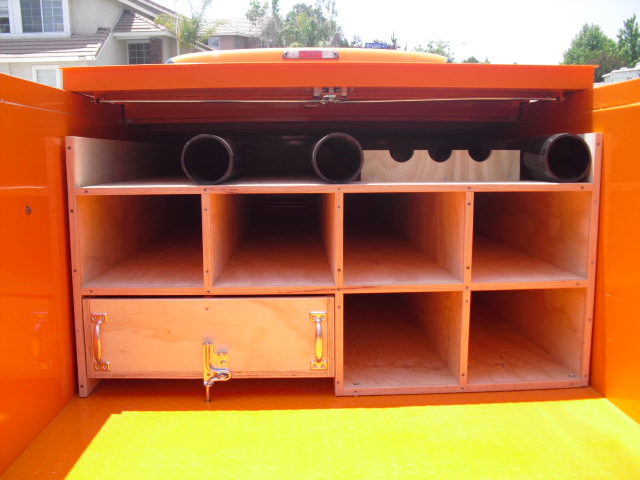

The ABS tubes on the left are for the "Survey Crew" signs, they are rolled up and shoved into the tubes. The cradles to the right of the two abs tubes are for rods, the abs to the right of that is for misc rods. The middle cubbies are for tripods, metal detectors, etc, the lower two cubbies are for digging implements and asphalt breaker bars. The roll out drawer is for our 2' and 4' lath. We keep our hubs in one of the side cabs with the paint. The space between the tail gate and the box is for our GPS equipment, and the occasional use of a Whacker brand type of gas powered jack hammer we use to dig up center line road monuments. So there ya have it folks!  1 each survey box!


Thanks for looking.


Oh yeah! Between the two ABS tubes on the left we slide in our sign standards.




John Morris
The Patriot Woodworker
  • Author

Standby Pops!


jack morris said:

Any chance there will be any left over ply I can have?


John Morris
The Patriot Woodworker

Great Job John. Veru organized and functional. Any time I wantoff work I have to use vacation time .. I'm happy you got the opportunity to be home and play ... LOL  Seriously though, all and all great job. ot the fancy side of things we all like but a vary functional piece just the same.







Wayne
God Bless our Troops and Protect them.
  • Author

Thanks Wayne, it's fun sometimes to just cut some straight lines and slam it together.


Wayne Mahler said:

Great Job John. Veru organized and functional. Any time I wantoff work I have to use vacation time .. I'm happy you got the opportunity to be home and play ... LOL  Seriously though, all and all great job. ot the fancy side of things we all like but a vary functional piece just the same.




Wayne
God Bless our Troops and Protect them.


John Morris
The Patriot Woodworker
  • Author

New pics guys!
