Location JIg for Blum type hinges

Guest Larry Jenkins1409946522
Guest Larry Jenkins1409946522
in Woodworking Archives

Featured Replies

Here's a simple jig I made for locating the 1 3/8" hole when using the Blum European type concealed hinges.


Note that it can be "rotated" for both ends on the door.


Place the jig, and then use a "Vix" bit to drill a pilot hole for your 1 3/8 " Forstner bit.


The extra hole in the corner is used to hang up the jig.


Larry

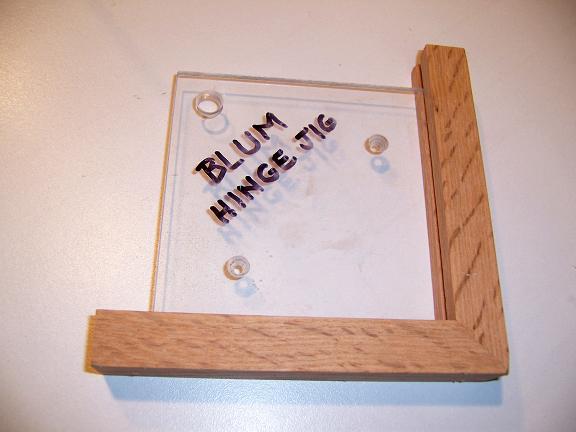

Here's the image..






Excellent Larry! That is a good jig man, because Blum sells their own jig for this and it costs around 45 bucks!  Good job!


Looks like I need to edit our foul language list, last I heard "Hole" was not a bad word.




John Morris
The Patriot Woodworker

It might be a few days, but I am making me one of these. Thanks Larry for the post and picture. Pictures are great!!

John Moody
John Moody Woodworks
