Dados; Rabbets and Grooves

Guest Larry Jenkins1409946522
Guest Larry Jenkins1409946522
in Woodworking Archives

Featured Replies

Last night in the Chat Room, we had a nice discussion about dados; rabbets and grooves.


Because there was some concerns about which one is proper to use for certain applications, the opines became a little ambiguous.

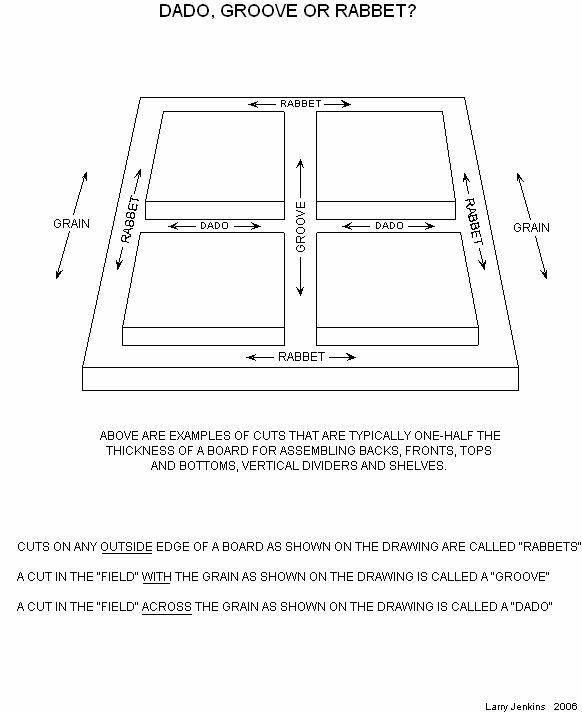

So, here's an image of a drawing I made a few years ago showing the differences as I understand them.


Larry









Lare..

Thanks for the drawing Larry.





You know a picture is worth a lot of typed words in a chat room.Grin.gif





Seriously it helps when we all understand the correct terminology. Those are all words that sometimes get misused when people are discussing a project.










John Moody
John Moody Woodworks
http://www.johnmoodywoodworks.com
