I got this idea and plans from David Smith at IAP.

In a quest to find a better and more accurate method to drill pen blanks I came across this design. It uses the same principle for securing the blank as the Dedicated Pen Drilling Chuck sold at PSI for $79.00. It cost me $13.00 and works just as good as the PSI model.

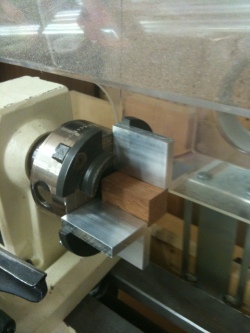

This jig is only used to drill the pen blanks at around 500 rpm. I hope this helps someone.

Materials: 2 ea. 2" X 1 1/2" 1/8" 6061 T6 aluminum angle

                  4 ea. 2" X 1 1/2" 3/16" 6061 T6 aluminum flat stock

                  4 ea. 1/4" rare earth magnets

                  2 part epoxy

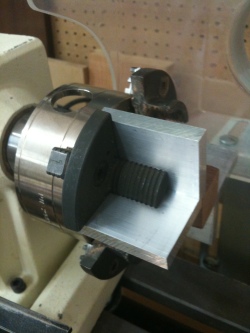

drill 1/4" hole in each face of the angle and press in rare earth magnets.

epoxy 1 piece of flat stock on the outside face on each side of the angle.

The rare earth magnets hold the jaws to the chuck untill the chuck is tightened.
