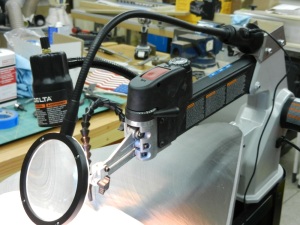

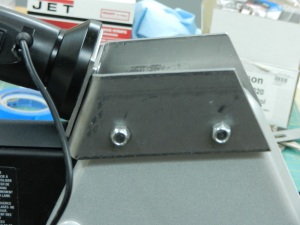

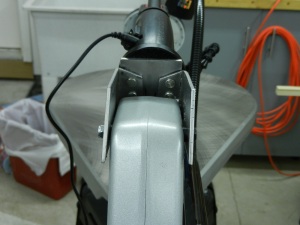

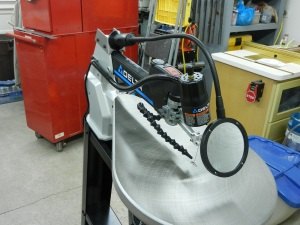

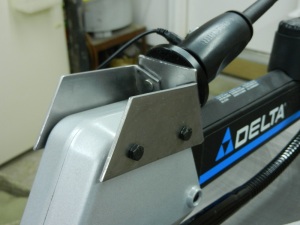

February 25, 201214 yr comment_33496 After purchasing a magnifier light and using it for a couple of projects on my scroll saw I found that mounting it to the arm or the table posed some problems so I came up with a more convenient mount that got the magnetic base out of the way and placed in an out of the way location that didn't interfere with the saws operation or controls but gave me the ability to adjust the magnifier to it's best focal length from the blade and there is no vibration transmitted to the light. This light works great and now it's even better. The bracket is a bit crude but it functions beautifully. I'll take the bracket to work and media blast and paint it and it'll look a lot better. It's made out of 1/8" X 2" steel flat stock a couple of nylon bushings, 4 steel rivets. $6.50 in material cost. Not too bad considering I cut all the pieces with a hacksaw and bent the side pieces with a hammer and a vice and the hand filed the rough areas.http://thepatriotwoodworker.com/forums/uploads/ning-dscn0086-33496-15.jpg' target="_self"> Report
February 25, 201214 yr comment_33503 Not bad at all Mike. Necessity breeds invention they say? This a great modification. And your handy work considering you didn't use metal work specific tools is pretty danged nice man!John MorrisThe Patriot WoodworkerProud Supporter of Wounded Warrior Project and Homes For Our Troops Report
February 25, 201214 yr comment_33502 That's pretty slick.Gene'The true soldier fights not because he hates what is in front of him, but because he loves what is behind him.' G. K. Chesterton Report
February 26, 201214 yr comment_33501 Great idea Mike. I'm sure some of the others here could use it too.GregScroll Saw forum hosthttp://www.thesawdustfactory.net/ Report
February 26, 201214 yr comment_33500 Very nice Mike. That will sure make it easier to see and not be in the way. Great that it doesn't have any vibration in it either.Good job!John MoodySite AdministratorJohn Moody Woodworkshttp://www.johnmoodywoodworks.com Report
February 27, 201214 yr Author comment_33499 Thanks guys. I may have to grind it down some so it doesn't look too bulky and crude. Hopefully I'll go to work tonight and grind it down and paint it during lunch. Report

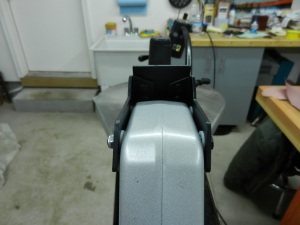

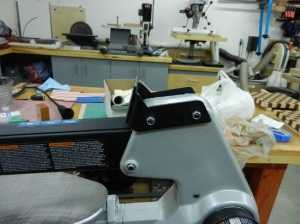

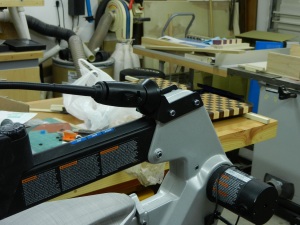

February 27, 201214 yr Author comment_33498 I trimmed the excess material away, primed and painted flat black to match the scroll arm and now the bracket looks more in scale to the saw. Almost as if it came with the saw! Report
February 27, 201214 yr comment_33497 Looks just like a factory made piece now MikeMike Dillen said: I trimmed the excess material away, primed and painted flat black to match the scroll arm and now the bracket looks more in scale to the saw. Almost as if it came with the saw! Report
