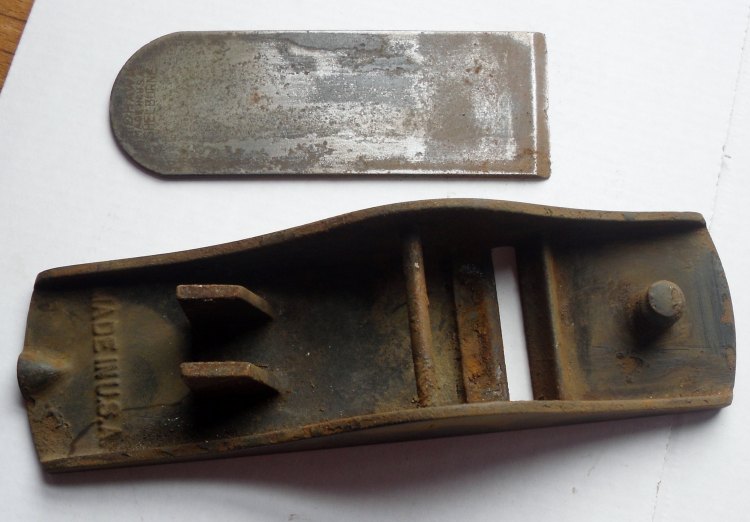

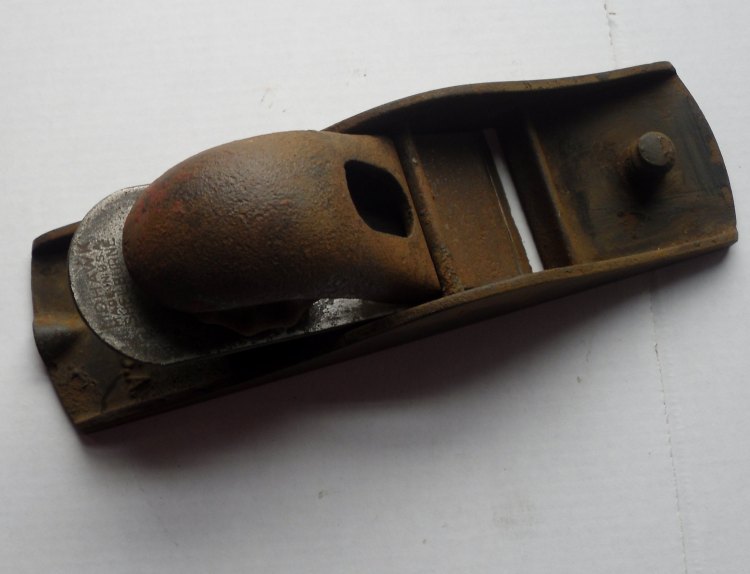

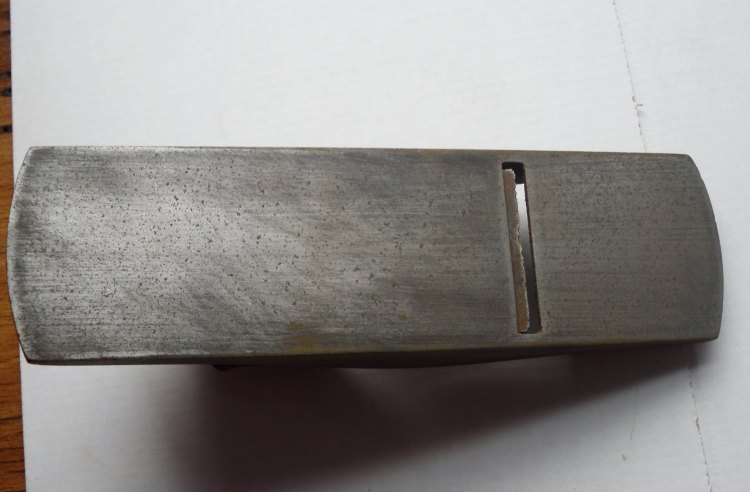

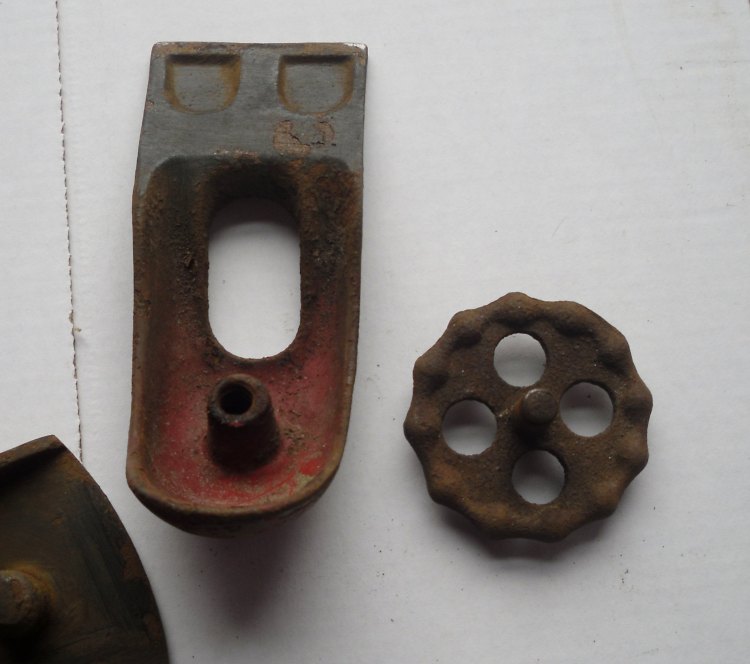

April 21, 201214 yr  While out doing the "Yard sale Tour" this morning, found an indoor Flea market ( Yippee) and found a little "Rust Bucket" of a plane. on the blade was stamped MOHAWK Made in USA   SHELBURNE Just a little fella, less than 7" long, by a hair under 2" wide.  The iron is 1-5/8" wide.   Has a funny adjustor wheel under that capAnd, yes, that IS red paint showing there.  A 'four-holer' of a wheel?  Got the sides cleaned up a bit, and worked on the sole aLOTYeah, I know, the iron needs some work too.   The base is getting cleaned up as well You should have seen it awhile ago, even had a spider nest.   Going to give this a good soaking, and a refinish. i don't know about that red paint, though.... Spent a whole dollar on this little guy..... 'and may the road raise up to meet ye'

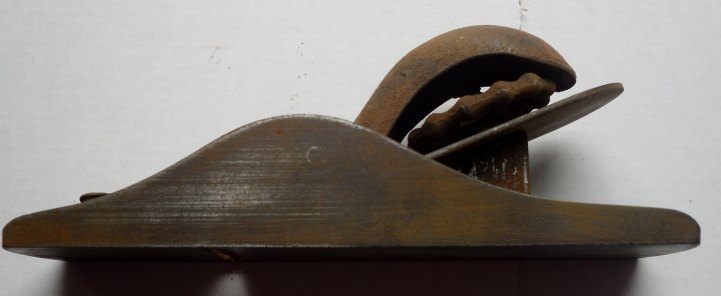

April 21, 201214 yr Author  Going to need a knob turned for this liitle guy.   That post is "threaded' for lack of a better term. Might just epoxy a knob on and call it good?   High Knob, or an onion shaped LOW KNOB??? Ok, how about a side view?On the other side, where that rod comes through the side wall, there is a slot for a screwdriver.  Black paint over most of this plane, with a red paint on the cap???   Still don't know about that red colour.... 'and may the road raise up to meet ye'
April 21, 201214 yr Author  This little fella is scheduled for a nice,long soak in Simple green this weekend.    tracked down the name, and found out about Millers Falls #700 Block planes.    Don't have any cocobolo for a new handle, guess I'll find some to use in the shop. 'and may the road raise up to meet ye' 'and may the road raise up to meet ye'

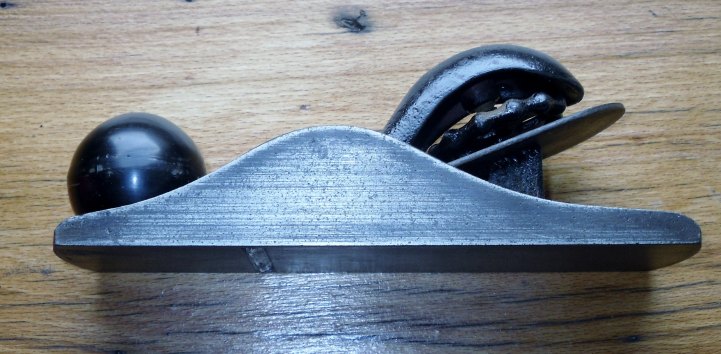

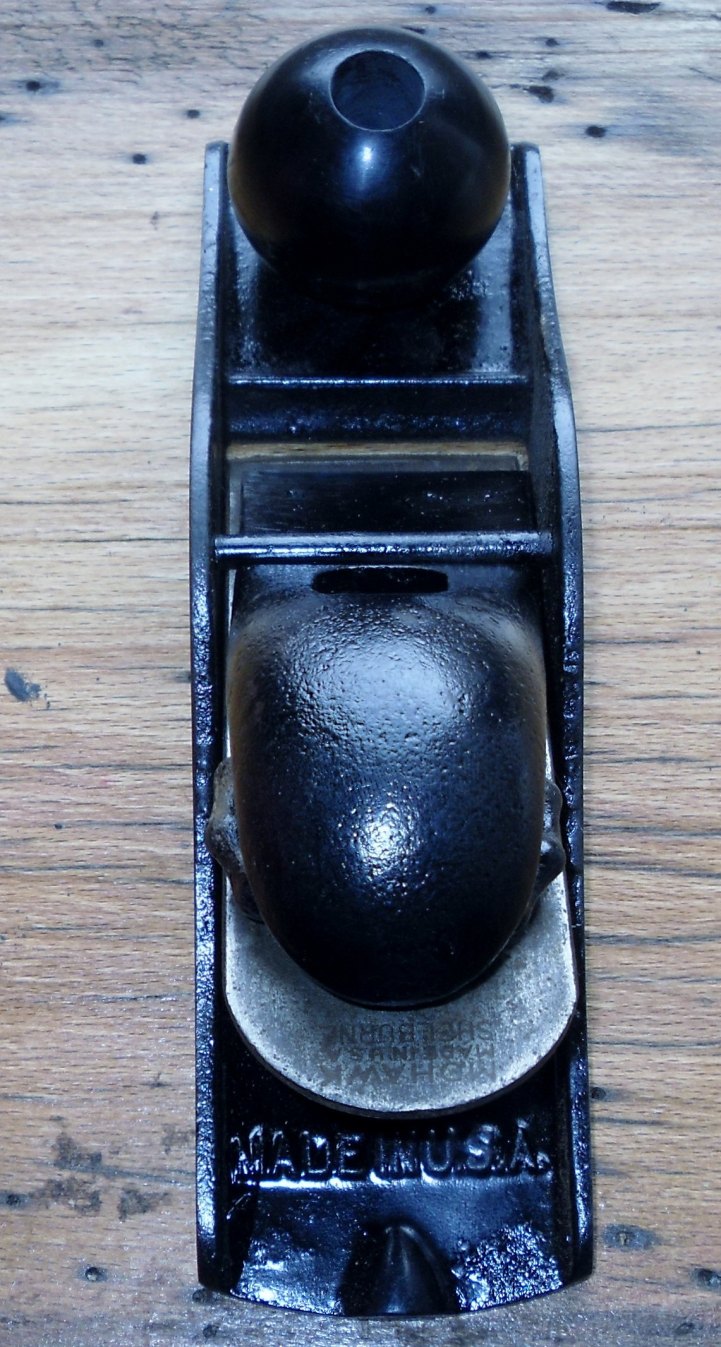

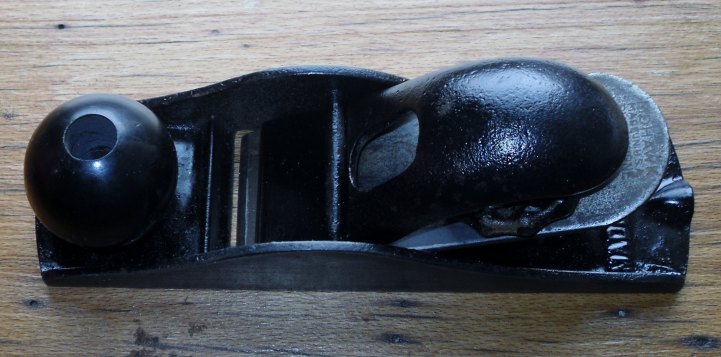

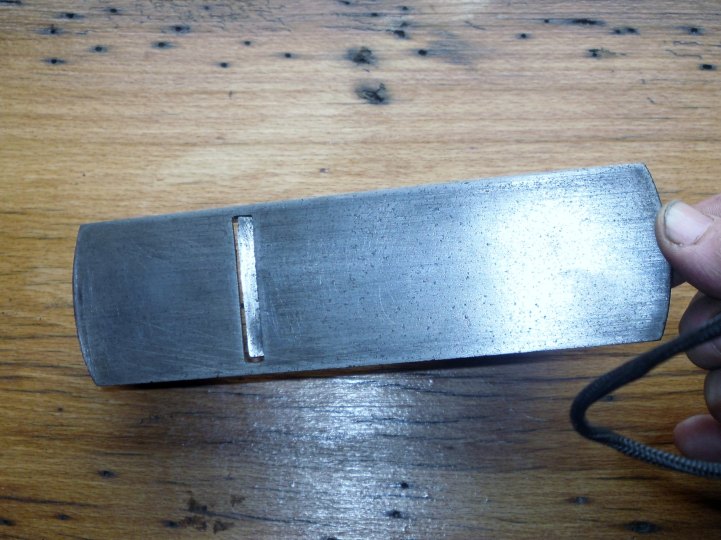

April 22, 201214 yr Author  spent some time, and a little paint, to get this back to user status.  Cleaned all the rust off, sharpened the iron AND the cap, and found an old knob of bakelite i could modify to fit.  A few looks at the "new" Millers falls " Mohawk-shelburne 700 Block Planelook any better?Just a dollar?This side even cleaned up nicelyFor a flea market find.. 'and may the road raise up to meet ye'

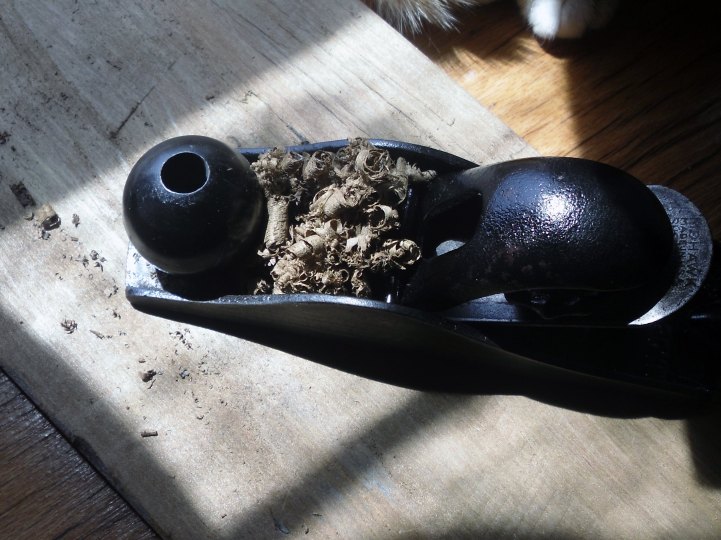

April 23, 201214 yr Author  Of course, one just HAS to show shavings from a plane, right?    After all the work, a little showing off.... face grain is Poplar, just some of my Barn Wood.   had it set a little deep, at first, this is after a re-set of the blade. 'and may the road raise up to meet ye'
