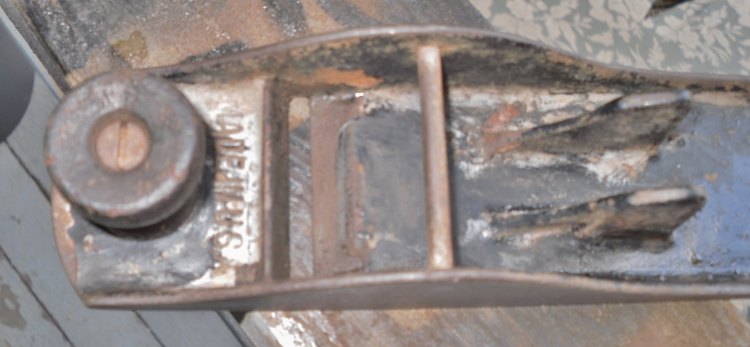

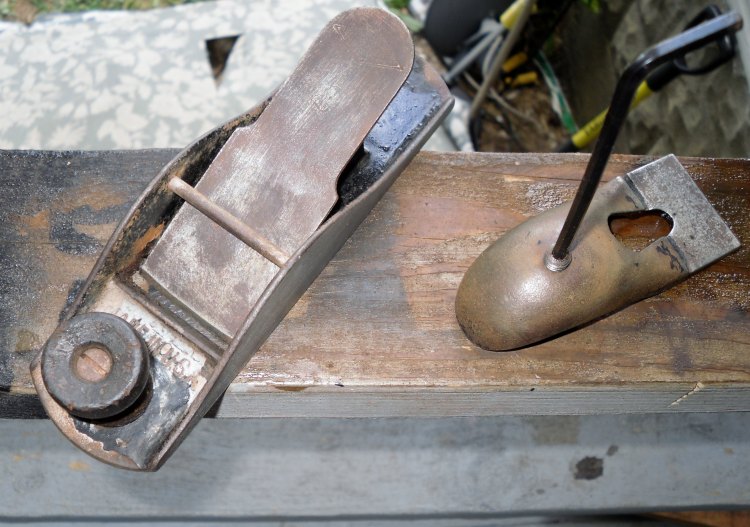

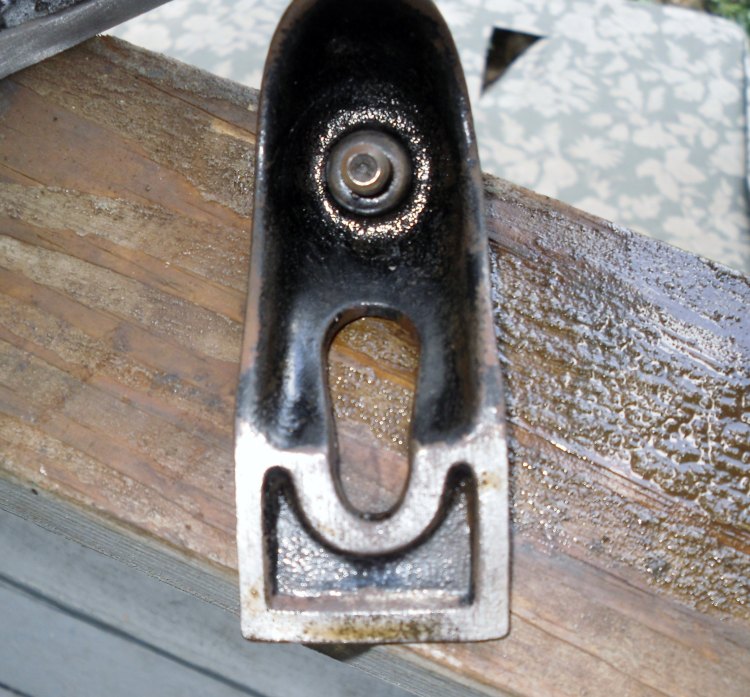

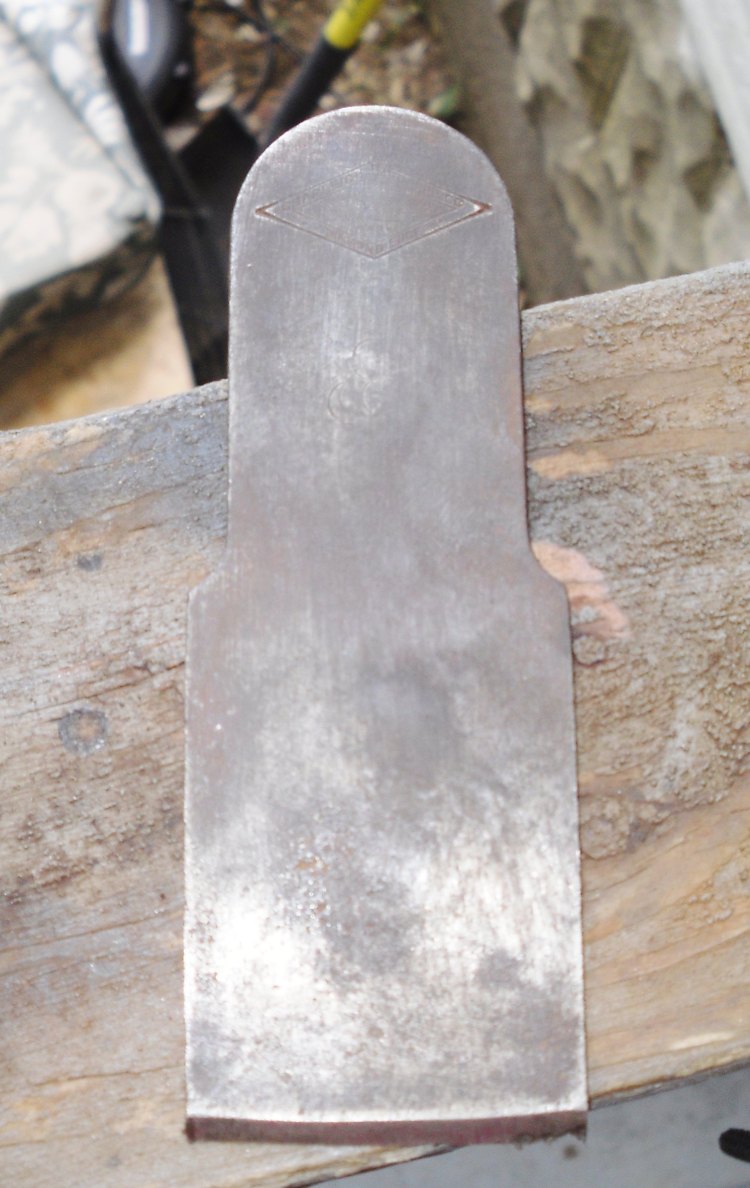

June 22, 201214 yr comment_28016 Trying to get three little block planes cleaned up.    Shocking them didn't quite work, will need a bigger "Zapper" i guess.   One little block is a rebuilt Stanley #120.   The second one is a might smaller, about an inch shorter.  The third one?  Well, it IS the same size as the #120, butWhen you need a 5/32 allen wrench to remove the cap? Check out that iron, as well. Different shape under the "hood' as well.  Look Ma, NO WHEEL! now about that ironEver see a Block plane set up like a scrub plane.  That is one big camber there.  Look closely at the end of the iron.   That is the logo for Diamond Edge Tools.   As for the base..All it says is "MadeinUSA", no other markings, at all. Strange plane,  A DE????Scrub/Block Plane???? 'and may the road raise up to meet ye' Report
June 22, 201214 yr Author comment_28021 Might have been made by Sargent for Diamond Edge Tools??? This little critter has been around awhile.  Same overall size as my Stanley #120, BUT, the cap sits way higher in the air, the stanley has a way to adjust the depth, with a lever.  Knob is a bit unusuall as well..  'and may the road raise up to meet ye' Report
June 23, 201214 yr Author comment_28020  As for that stanley #120:   Got a replacement cap, and it fits!!    The iron though has another dating feature.    Instead of your usual Stanley in a box logo, or a "V" shaped logo, or even a Sweetheart thingy, this iron has a stamped STANLEY RULE & LEVEL Co. in a big curve around the top edge of the iron.  A MADE IN USA is in a line across the iron's width.   MIGHT be something inside that arch, just can't see anything, yet.  As for the third blockplane.   It has a 1-1/2 wide iron, no markings, other than those grooves on the iron's edge. Hmm, a Toothing Block plane?  Base is just a hair shy of 2" wide, by about 6-1/2" long.  Cap has a "Bottle-cap' adjustor to tighten the iron down.   Iron rests on a single "post".    In front of the opening for the non-adjustable mouth..... well, instead of the usual flat stock, this has a wedge shape.    Small round knob, with a bolt through it.  The only markings so far has been a "5" on the underside of the cap.  Strange planes are flying around these parts..... 'and may the road raise up to meet ye' Report
June 23, 201214 yr comment_28019 Steve,  Maybe it's a stealth plane Sorry I just couldn't resist. . . .  Larry Report
June 24, 201214 yr comment_28018 You got me on this one Steve.John MorrisThe Patriot WoodworkerProud Supporter of Wounded Warrior Project and Homes For Our Troops Report
June 24, 201214 yr Author comment_28017  #1 Stanley #120   VERY old iron..#2- DE Block plane, made by Sargent as a 107.   Has the same footprint as a Stanley #2.   Might have been cambered as a small smoother.#3-   MIGHT be a Stanley?    SMALL little plane, 1-1/2 wide iron.   6-1/2" long base.   FANCY knob, modeled on a Stanley "High Knob" just sized to fit a small block plane.  Has stanley style threads. 'and may the road raise up to meet ye' Report
