I picked this up a while ago and posted about it here.

It took a little longer than I had planned to get a chance to restore it.  It was a simple restoration and once I able to work on it it only took a weekend to do and most of that time was spent waiting for paint to dry.

The sander was in good shape and complete with all 10 spindles and 3 throat plates.  The paint was descent with only a couple of chips but I didn't like the color, so rather than completely strip it I just sanded the paint to roughen it up and painted over it.

I found the original Max color under the cast iron base and matched it as close as I could.  The color balance is a little off in these pictures though, I forgot I had a filter on my camera from a previous shoot so the color looks a lot bluer than it really is.

Anyways, here's what I started with ...

A tan 1985 Beachmont Tabor Sander
Model No. VS1-18
Serial No. 85036

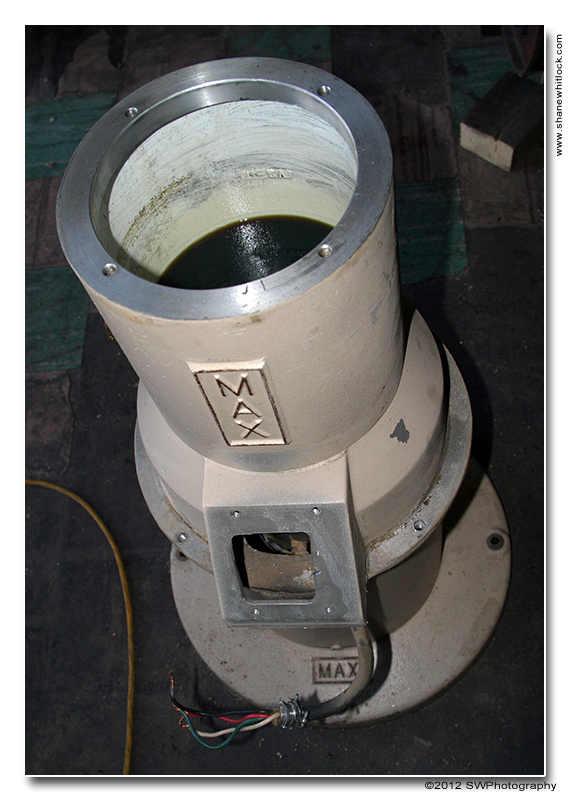

As purchased:

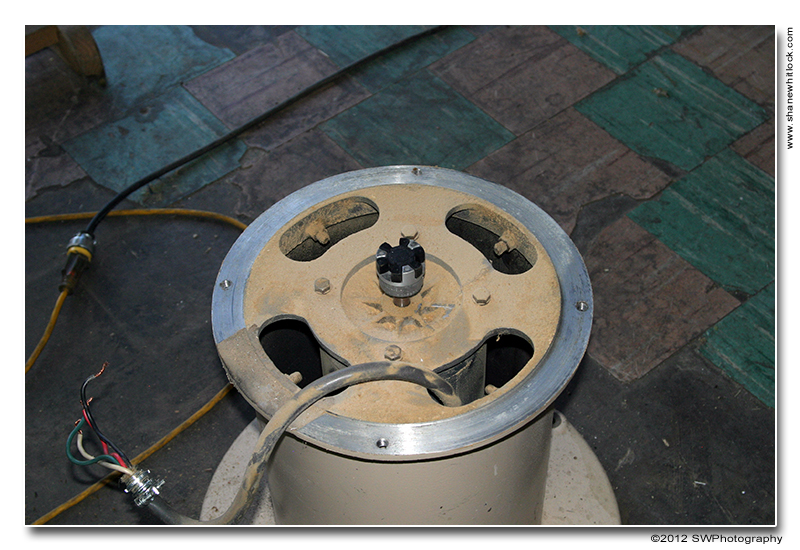

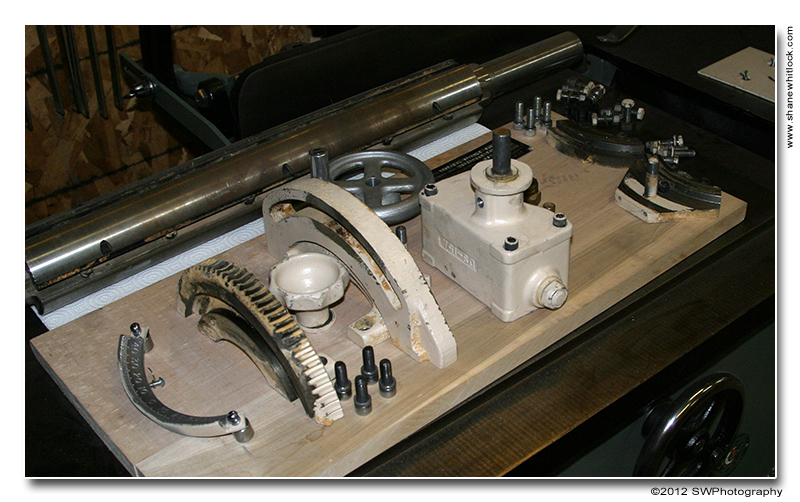

It was very easy to tear apart, just a few bolts at each section.

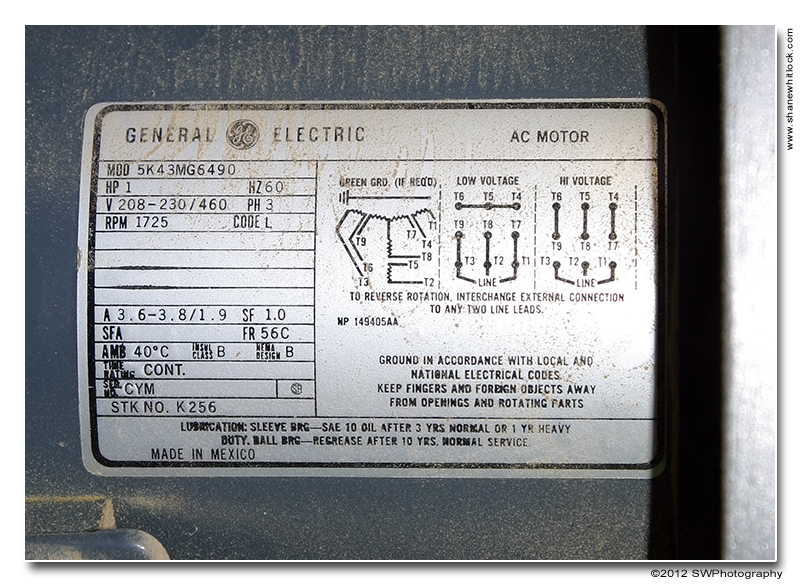

3 Phase 1 H.P. motor

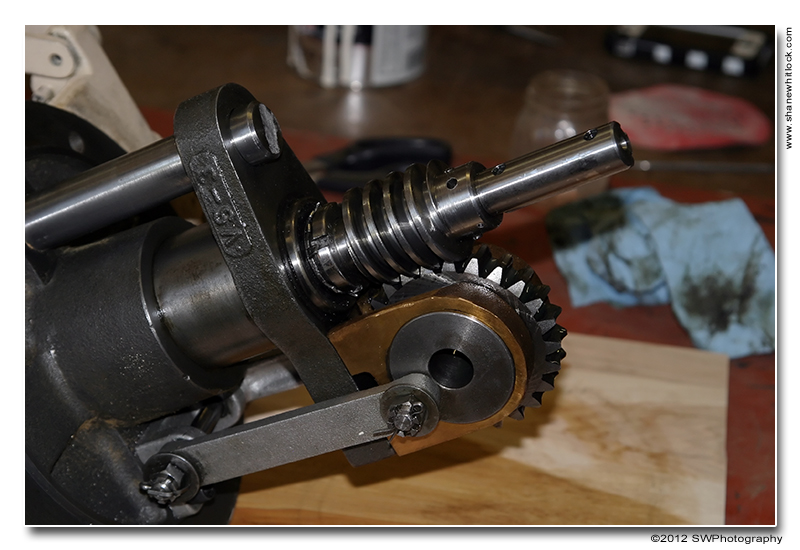

The gears look great. I pulled all the bearings, popped the shields off, cleaned and regreased them.  They are still a little noisy so I think I will end up replacing them.

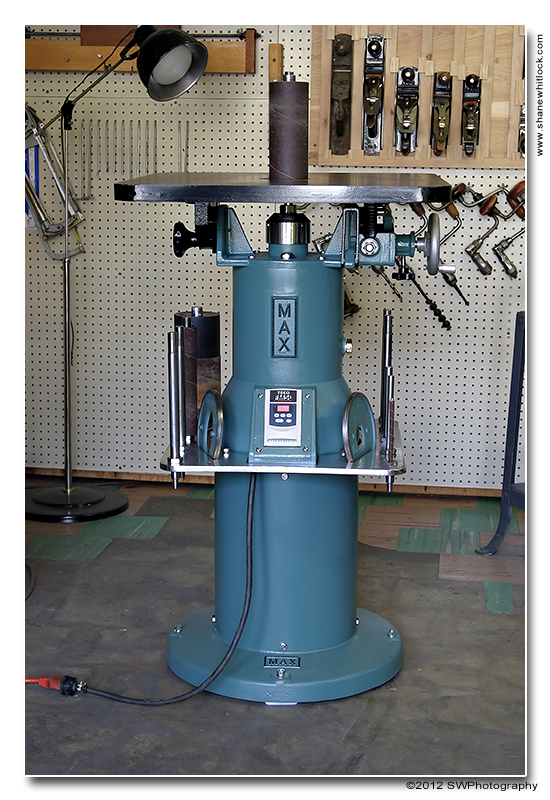

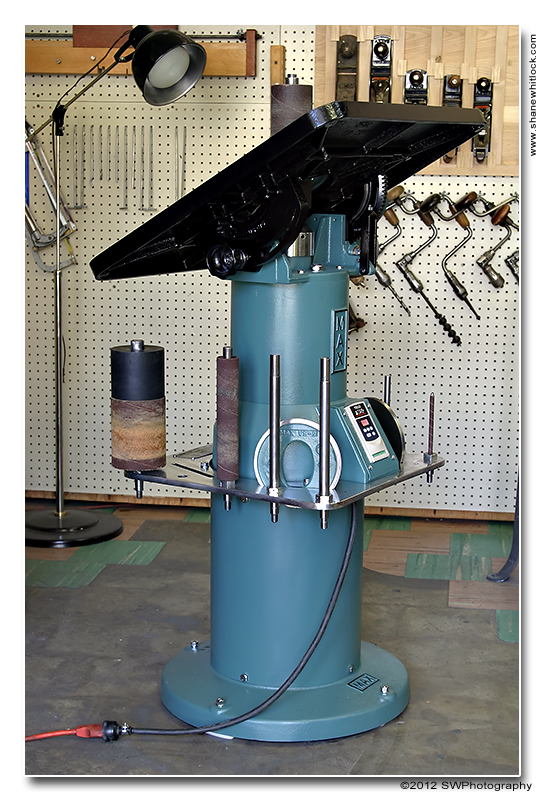

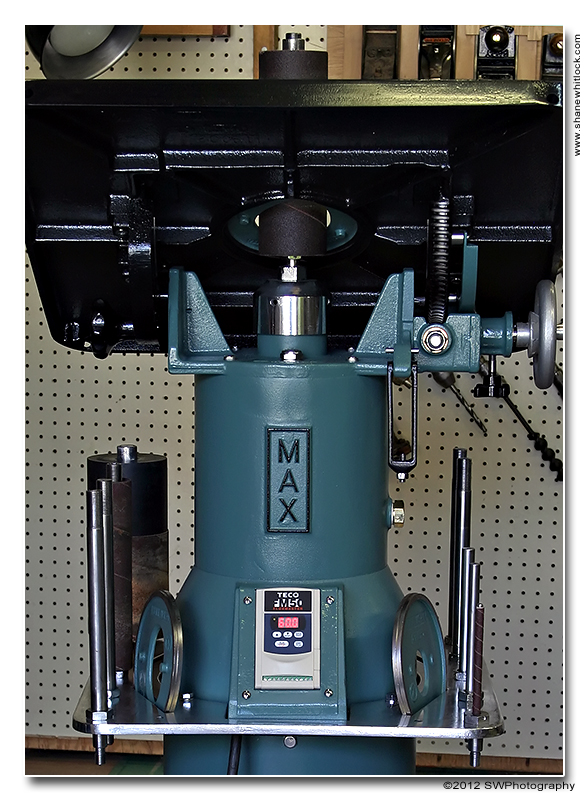

Here it is all finished.

The table that the spindles and plates sit in was really chipped up and I had visions of it happening again after I repainted it, so I stripped the paint off that I had just put on and polished the table instead. I like the looks a lot better and now I don't have to worry about scratching the paint either.

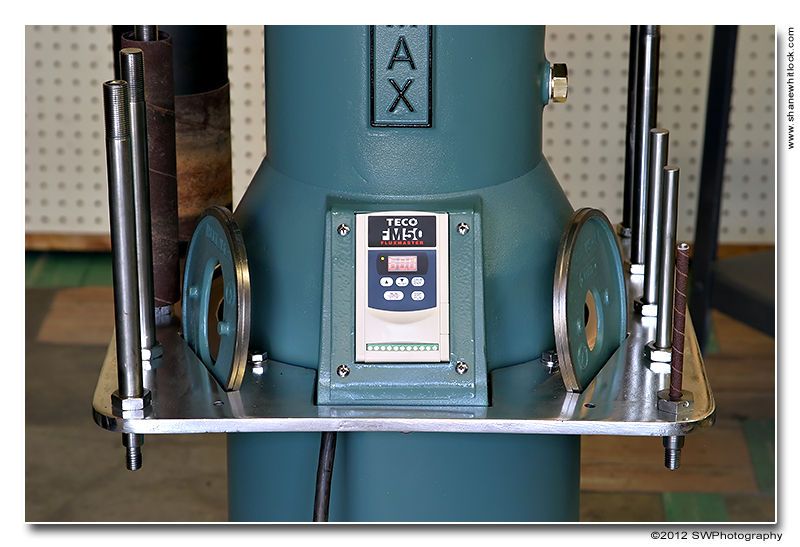

I have 3 phase in the shop but I wanted it to run off of 110v in case I decided to sell it so I added a Teco FM50 drive to it. Having the variable speed is also cool.

I had to do a little modifying to the cast aluminum to make it fit. I was also worried about getting enough air flow to it so I installed a motor fan to the motor shaft just below the coupler that ya can see a couple of pics above. I also put some spacers under the base to allow air to get inside.

Just under the driver and the aluminum rack (where the cord is coming out) there is opening about 2 inches wide and 5 inches long. I can hold a lighter 10 inches away from it (yes I actually measured it ... lol) and there is enough airflow to blow it out so that should be more than enough to keep it cool.

Thanks for looking,

Shane
