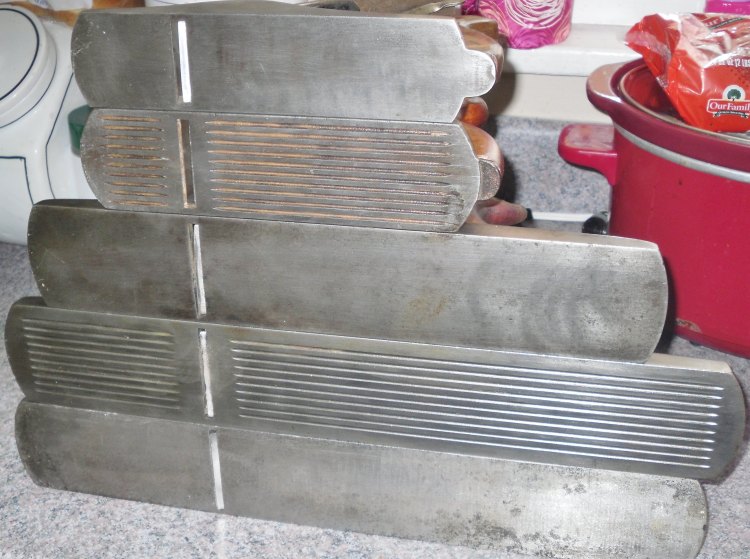

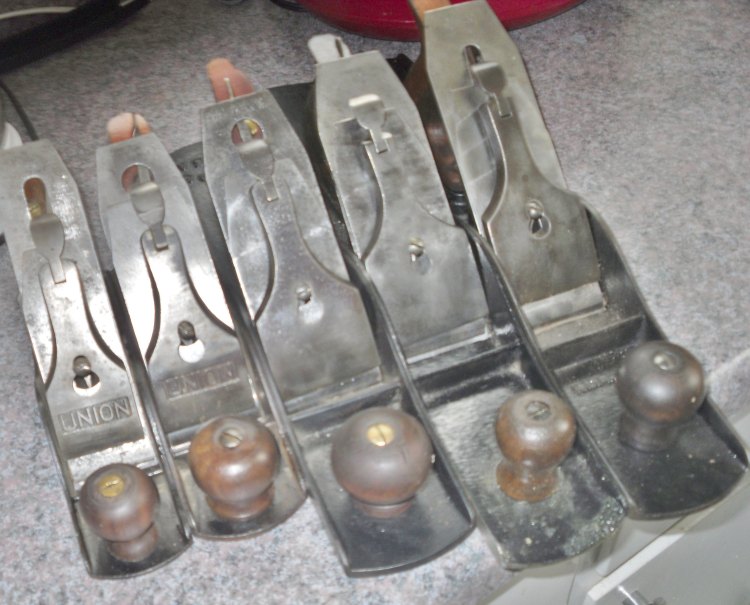

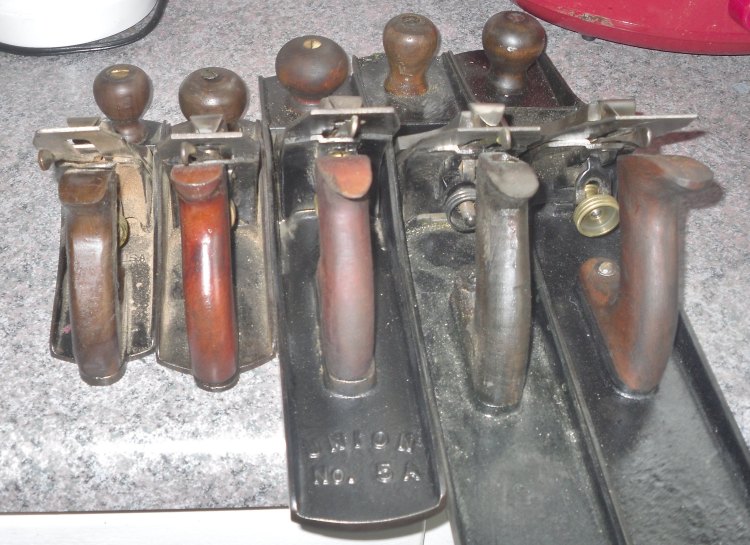

January 6, 201313 yr  Well, it has taken almost a year, but I think I might have a set of Union made (1900-1917) handplanes. Not sure about who made the KK7 down in the shop, but, the following group are made by Union Mfg Co. of New Britain, CT. #3, #4G, #5A, and two #6s.  One was made for a Seth Savage Co.  the other was for Shipleigh hardware of St. Louie as a Diamond Edge DE6c.   Most are of the early Union plane era, usually called type #2.  A look at the bottoms..That #4 shows one of the bad sides of having grooves cut in the soles, rust!  The bottom three I have just finished "Re-Freshing".   One more look before the meeting is adjourned..Check out the lateral levers.  that is a Union trademark.   Meeting is now adjourned... Sign on pick up truck's back window..:' Save a Horse, ride a Cowboy'
January 6, 201313 yr Now - that's what I call a great collection.Fredaka Pop's Shopwww.pops-shop.com'Soooooo many patterns - sooooo little time'Scroll Saw Forum Host

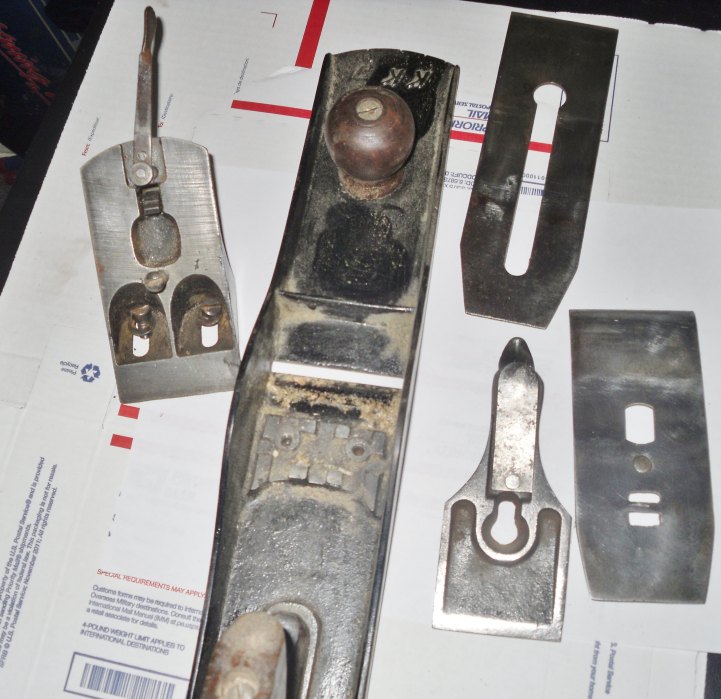

January 6, 201313 yr Author  This just in: That KK7 of mine is another plane by UNION, at least the frog is.   currently going through aRefresher Course, Might be ready to plane a board or two by tonight... Sign on pick up truck's back window..:' Save a Horse, ride a Cowboy'

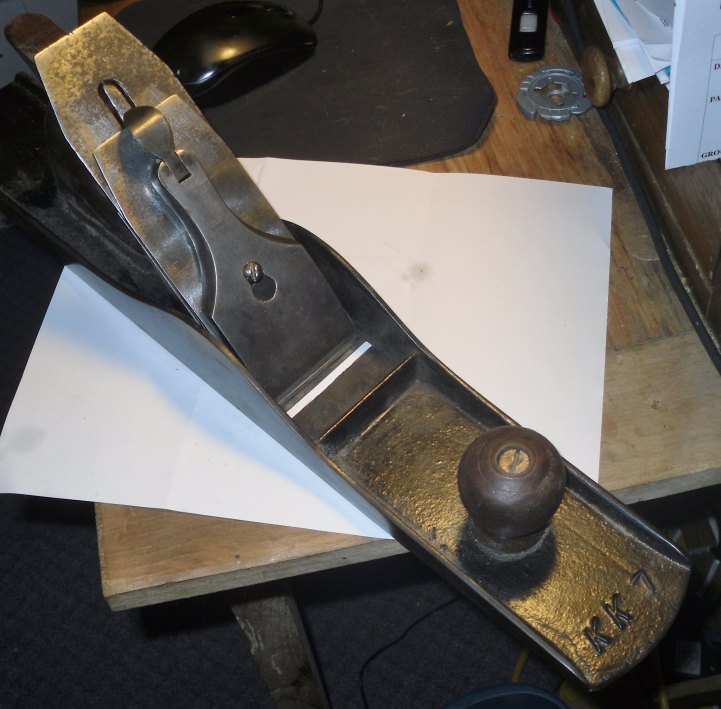

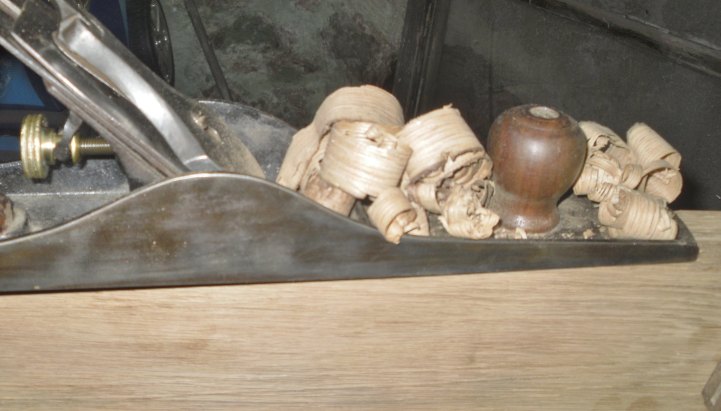

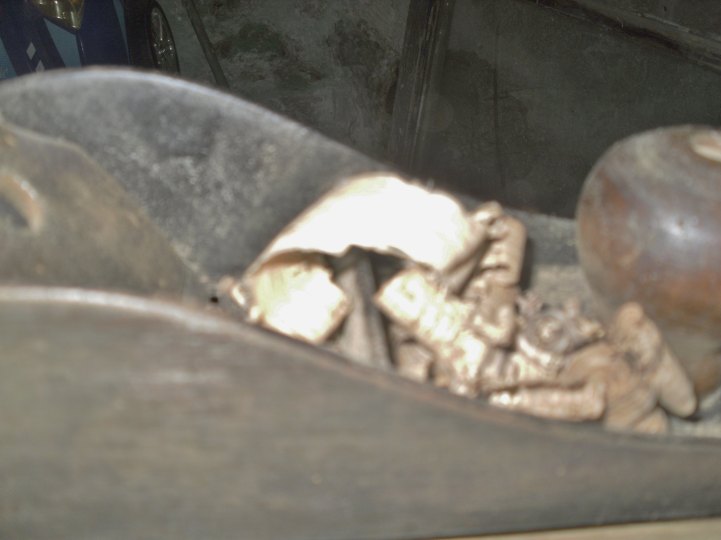

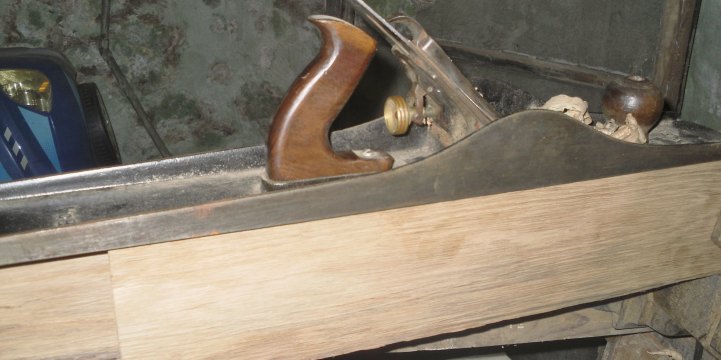

January 7, 201313 yr Author AND, It WORKS too!Test Drive!    And a Portrait of the cleaned plane I WAS going to work on the Bailey #8c today, but...But, after test drive, I don't think it needs it..Well, the part that does need some work... I somehow don't think I can fix, at least in my shop right now...24" long, weighs at least 10 pounds.... Sign on pick up truck's back window..:' Save a Horse, ride a Cowboy'

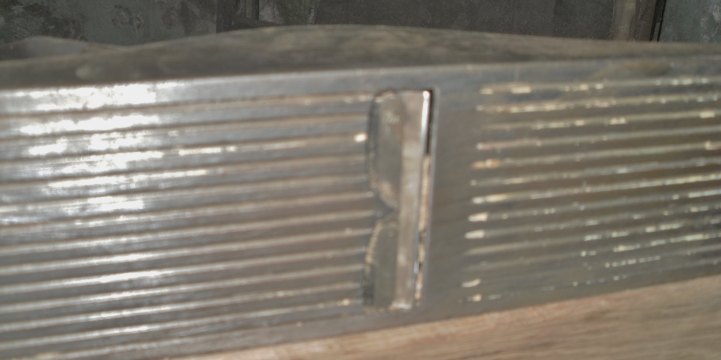

January 7, 201313 yr Looking good Steve, what happened to the blade opening at the bottom? Is that wear?John MorrisThe Patriot WoodworkerProud Supporter of Homes For Our Troops and Wounded Warriors Project
January 7, 201313 yr Author As found when I bought the plane at an Antique store.......for......$25+tax.   Seems a lot of planes had this kind of wear.Sign on pick up truck's back window..:' Save a Horse, ride a Cowboy'
