John Morris

MWTCA February 2019 'What's It' Project (491)

Rate this topic

Recommended Posts

"What's It" Basic Rules Reminder



For a full run down on this project and rules please go to: "The Patriot Woodworker and MWTCA "What's It" project"

  • Only Patriot Woodworker Members are eligible to participate and receive the award.
  • The MWTCA only accepts a verified source to support your answer, so one should be submitted with your answer, such as a patent, catalog entry, tool book reference, or a respectable website on the subject. Do not let these requirements prevent you from having fun and submitting educated answers on the subject without verification, we can worry about references later. All answers are welcome, as well as healthy debates regarding "What's It".
  • If a verified and referenced answer is not arrived at by the end of each month's "What's It" project, a random draw will be performed for a "One Year MWTCA Club Membership".
  • Only Patriot Woodworker's who participate in this "What's It" topic will be included in the random draw.



Ok ladies and gentlemen, we now have our "What's it" live and ready!

The image(s) below is a MWTCA "What's It" image for you to research, and tell us all here in this topic post, just what the heck is it!



Project Details

The information provided hereon is all the information that is provided, no further information on this item will be added.







Share this post


Link to post
Share on other sites

Looks like a tool for making rivet holes....either in sheet metal ( aircraft?) or doing the rivets on a pair of jeans....at Levi Strauss & Co.



"L" shaped rod would be a depth stop.....knurled sleeve to grip and pull the punch back out... you'd hit the  wooden handle with the palm of your hand.



I may look around later....and see what I can find...

Share this post


Link to post
Share on other sites

Why does it look like it has something to do with "sparks"?

Share this post


Link to post
Share on other sites
44 minutes ago, John Morris said:

Why does it look like it has something to do with "sparks"?



The "L" shaped rod makes it look like a spark plug.  I think is is for inserting something which is slid onto the tool and the "L" shaped rod holds it from sliding off during use.

Share this post


Link to post
Share on other sites

Steve May be on to something.  The purpose of the rod is to hold the larger knob in place.  If you retract the rod, the end will slide off.  I’d guess a grommet punch.  The rod goes through the grommet and the larger end is hit to crimp it.

Share this post


Link to post
Share on other sites

I am thinking an approval marking or stamp for inspectors to use and the l is an initial.

Share this post


Link to post
Share on other sites

so here we go again...

does it have plunge stop...

does it have a draw stop..

is it spring loaded...

does the ''L'' arm end pivot out...

does the ''L'' arm act as a clasper...





Edited by Stick486

Share this post


Link to post
Share on other sites

I vote hinge bushing insertion tool...

Share this post


Link to post
Share on other sites

might even be for a rawl style tapered plug...

Share this post


Link to post
Share on other sites

I just realized that the larger end looks to be turned wood while the smaller end is brass.  The smaller end is knurled for grip.  I still hold that it is a grommet or eyelet press.

Share this post


Link to post
Share on other sites

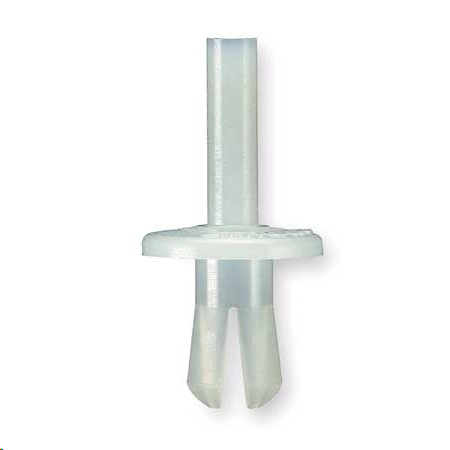

The only tool I have ever seen similar is a Panduit TNR tool for driving split rivets.  I may even have on around here still.







Edited by HandyDan

Share this post


Link to post
Share on other sites

Hmmm...maybe just a way to light a gas furnace.....Fits into the pilot light hole....couple of hits on the ends to cause sparks,,,"L" rod might be like the flint, plunger would be rough enough to cause a spark...like lighting a O-A Torch....may go along that pathway?

Share this post


Link to post
Share on other sites
1 hour ago, steven newman said:

Unless  the plunger is steel, and the brass rod has a flint insert....

Kind of like the acetylene strikers?

Herb

Share this post


Link to post
