All building being built for wood shops should be built for 20 or 30 years down the road..

Sign in to follow this
Smallpatch

349 views

 We left a very perfect size shop where we retired from. A  40x60  with a concrete floor.

 So in thinking ahead with my lovely we won't need that much shop cause in our visions every road and highway is the U S was going to be our work shop.

    Wild thinking but hey the very first 8 years of our last business we were open 7 days a week. Every day and even when it rained, we had many things to do.

From experience, so believe me when I say build a shop for 20 or 30 years down the road. It will eventually get to where every tool and piece of machinery known to man and a few gorillas will end up in your shop. And lots of those just got to have, I can't work another day with out those new inventions never gets touched again. They are there taking up room and yes you will smirk and brag to every one who enters your shop. I almost have to pay someone to come in my door anymore cause all the people I know has learned their lessons. Once I finally get someone inside the door they claim I lock it so every one who enters has to go through the long sermons everyone has learned word for word over the years...

   Side tracked from my story already and not even talking bout the size of a shop. Men know size matters. In less than six months after I finished my shop I was tearing out the north end of the building fixing to add 12 more feet so now it would be 30x62. A motor home came into our life and I didn't want any part of it fading...when parked at home. But with all those highways, and some of them are even free to drive down but in a round about way still cost a bundle. Every trip we took a new map and a different color of Marks A Lot was used was to show every road we drove down... A new map and the marker thing was a results from the very first trip we went on right after we got married. This was before any kids showed up on our doors. We still argue how we got to Florida from Texas. Now every trip is recorded in color. I wounder if the markers fades like sales receipts?

    Never having gone to any kind of construction or building classes, the library was my best friend. Having lived in the Lubbock area after I got out of high school another learning place was in the area where new homes  was being built. I never talked to any carpenters on the jobs but would sit around and watch. I bet they all thought , that is the youngest inspector we ever saw. I might have been responsible for their doing better work when I came around..I did witness a few guys who had picked up  hand full of nails for the other side of the house and had to put them on the ground and get some for the side they were working on....

   After having put up the forms for more concrete for the extension and waiting for the concrete trucks to show up it dawned on me this adding to another existing building was going to be somewhat harder than building one out all by itself.. So this is where I will show wife how exact my style really is, bowling or horse shoes or building a building a person should be at his best for all the world to see.

  I used oil field up set tubing for all the up rights and had welded flat 6x6 plate steel to the bottom and top of three foot long 2 7/8 tubing burried  in the footing before the concrete was poured. So after the concrete set up I welded the steel studs on to the foundation.

 The building structure is ridgid and will be there after a tornado comes through. They might be bent all the way to the ground but will still be there.

    So how do I get the same exact roof slope and wall sides exactly in line so they will match up like it was all built at once. Quick and easy to say>>>>>>>>>>>>>

 I think I ended up with thirty different string lines going all kinds of directions and the metal siding and metal roof panels were not hardly faded in the six months or so they were up so hey, it all looks like one unit..

   When you work by your self you do things differently and make helpers using other methods. A really old fork lift that would only reach 8 foot high was my best helper.  I built an addition that would allow me using a chain hoist to lift up the pipe trusses to more than 16 foot in the air so I could let them down on 9 foot tall  2 7/8 pipe uprights and rest there while I jumped down off the forklift and weld each truss every ten foot  on the wall pipes. The old Perkins motor of the fork lift smoked like a mosquitoe sprayer but as long as I run it at an idle it worked great. Make the trusses stay sitting on top of a 2 7/8 " pipe I used 2 pair of Vise Grip chain wrench's locking two pieces of metal on to each side of the up right pipes. Thus making a saddle and the fork lift keeping them in the air, I could go in an get a cup of coffee while the trusses sat there..

 The only help I got was one day after I had put most all the sheet metal up on the walls a brother in law drove up and said looks like you might need some help. Well I could have used some the three previous weeks but yes today finishing up I could use it.

   The trusses I built one on top of the other laying down on the concrete. My reasoning, if one truss was crocked they all would match and would make the sheet iron all lay flat and pretty.

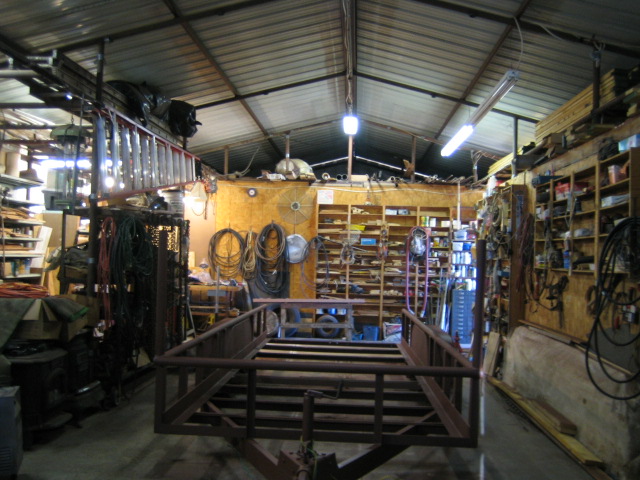

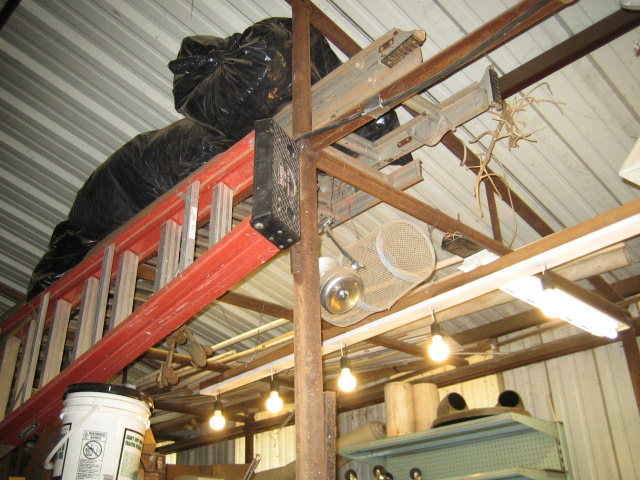

   I knew after all this extra extending would not get the motor home a place to park inside for the motor home clearance is 12'4" and the shop has 9 foot walls. I would get the extra clearance by cutting out the inside of the pipe trusses but first I would have to drill holes in the concrete installing new pipes under the end of each truss I would  have to cut out.  This was I would still have each end of each truss welded in to the ground through the concrete.IMG_8505.JPGIMG_8510.JPG

 This area was a trailer paint room last week.



Then after I got each pipe buried in the concrete and welded under each truss I could go ahead and using a cutting torch cut the inside of each truss that was in the way. The motor home just barely fits but I have walking room beside it and I still have working space on each side of the shop and still have a 30 x 20 insulated with heat and air plus the shop area for wifes stained glass  8x20 heated and air.

  Oh and I was smart enough when putting up the concrete forms to lay pipe and drains for bathroom  and sink which saves lots of walking.

   I have more nonsense on shops but gotta wire my trailer right now thats it warm out.
